Product Overview

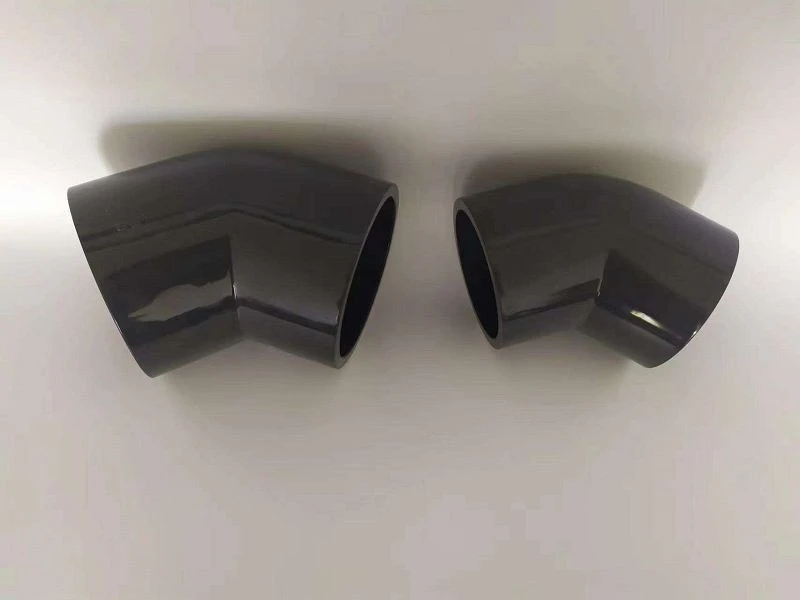

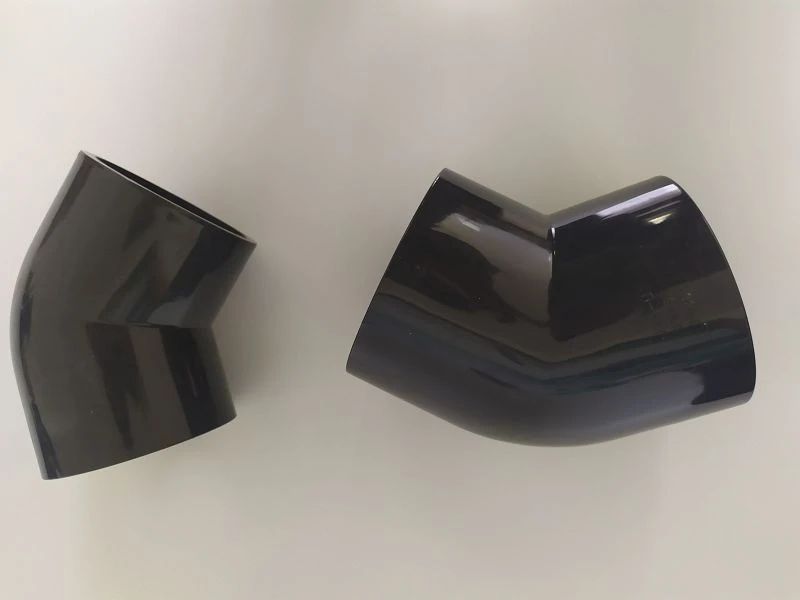

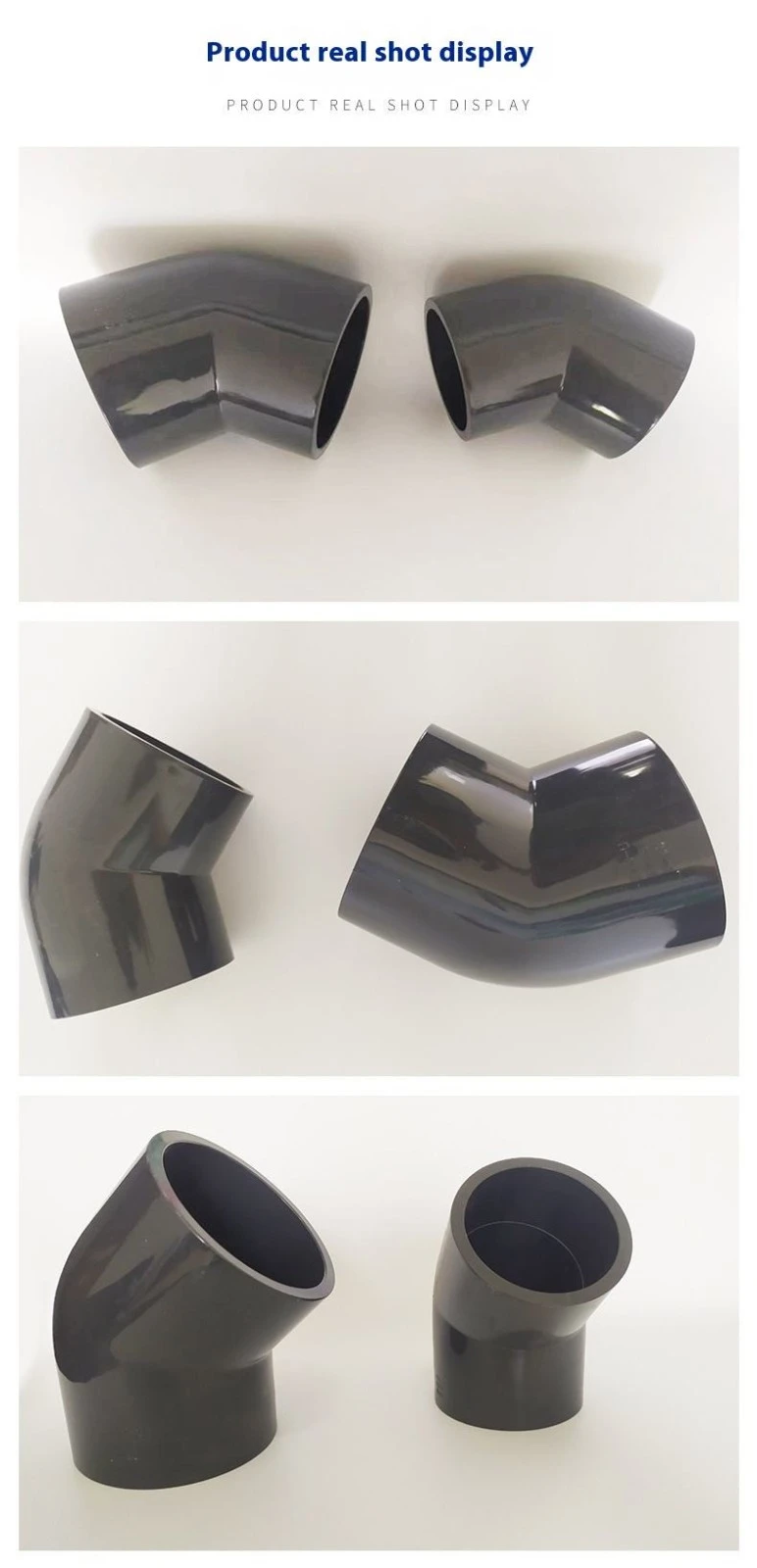

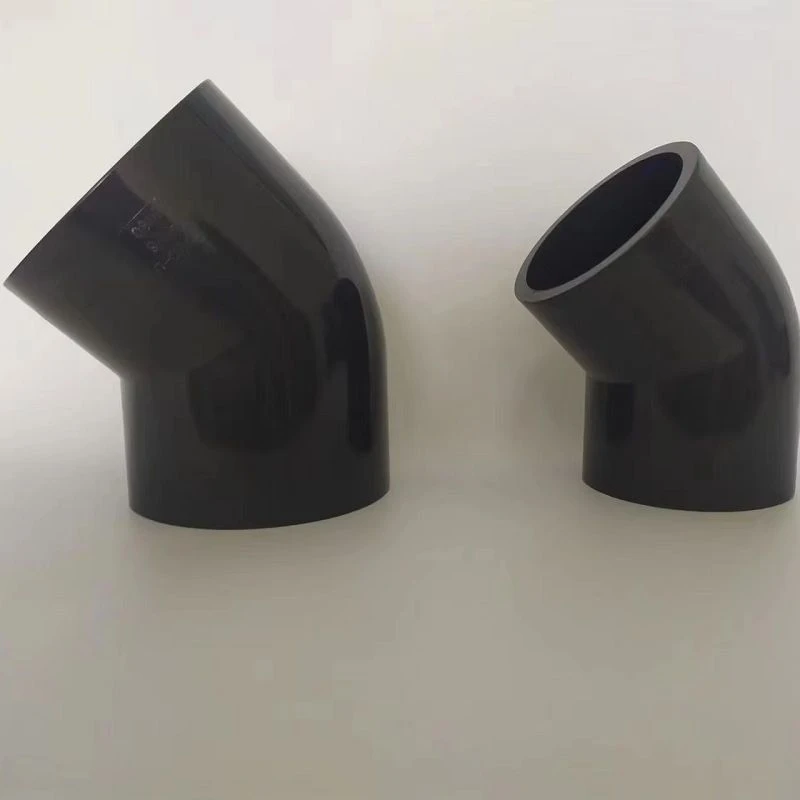

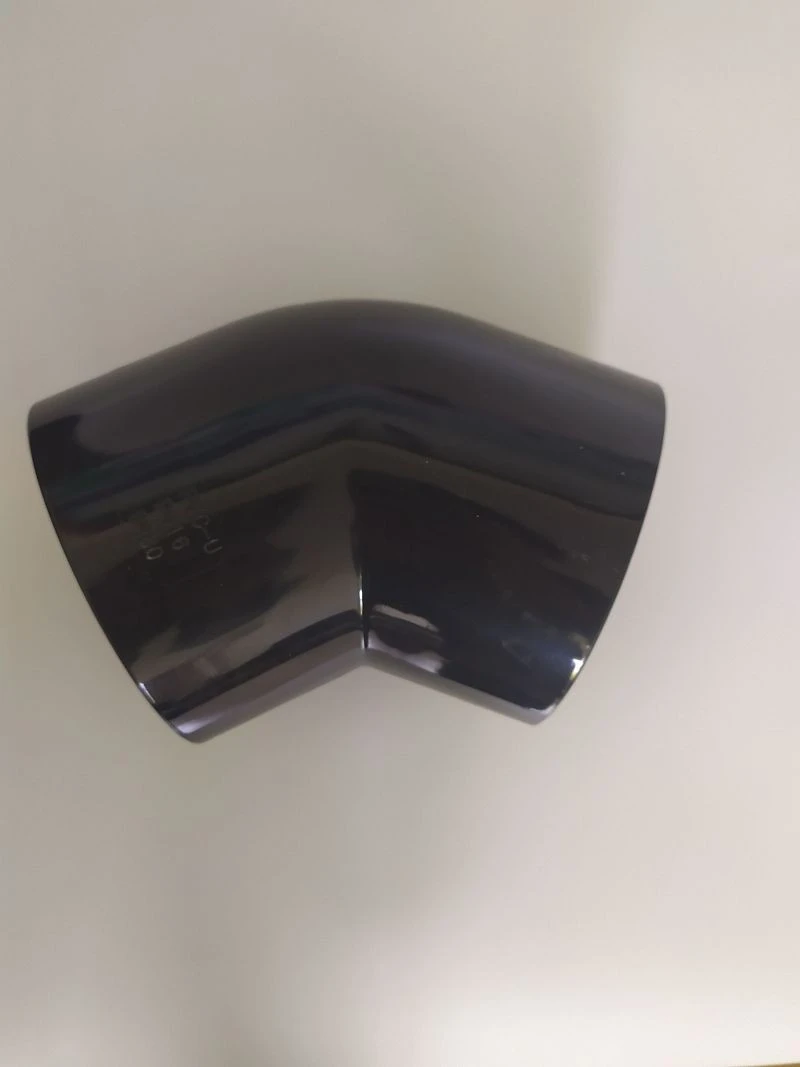

4 PVC 45 Degree Elbow is a PVC-U pipe fitting for wholesale and project sourcing. It connects 4-inch (DN100) pipe sections at a 45° angle for municipal water supply, agricultural irrigation, drainage, and industrial utility systems.
Shanxi Kaisheng Plastic Co., Ltd. manufactures this fitting through injection molding, with pressure ratings and connection configurations specified for different piping requirements.
Key Product Advantages
Standardized DN100 Sizing: Engineered to seamlessly integrate with standard 4-inch PVC-U piping systems.
Flexible Pressure Classes: Available in PN10 and PN16 configurations based on project specifications.
OEM & Customization Support: Tailored branding, custom color formulas, and specific dimensional adjustments available for qualified orders.
Global Compliance: Manufactured in accordance with major international standards including ASTM, DIN, ISO, and NBR.
Technical Specifications
|
Item |
Specification Details |
|
Product Name |
4 PVC 45 Degree Elbow |
|
Product Type |
PVC-U 45 Degree Elbow / Bend |
|
Compatible Piping |
Standard metric and imperial PVC-U pressure pipes |
|
Standard Colors |
Grey, White, Blue, or Custom Color |
|
Operating Temperature |
0°C to 45°C (Up to 60°C for short-term exposure) |
|
Connection Options |
Socket Connection, Solvent Cement Joint, Rubber Ring Connection |
|
Expected Service Life |
Up to 50 years |
Material & Manufacturing Quality
Raw Material Screening: Every batch of raw resin and additives undergoes rigorous laboratory testing for purity, melt flow index, and density before production.
Precision Molding: Controlled thermal processing ensures consistent wall thickness, uniform socket dimensions, and smooth interior flow surfaces.
Finished Product Testing: Fittings are hydrostatically tested and dimensionally verified to guarantee leak-free performance under rated operating pressures.
Connection Types & Installation
The 4" PVC 45° Elbow supports two connection options:
- Socket (Solvent Cement) Joint: Suitable for pressure water supply systems.
- Rubber Ring Joint: Suitable for municipal water supply, drainage, and underground pipeline systems.
Installation Steps
- Cut and clean the pipe and fitting surfaces.
- Dry fit to check alignment and insertion depth.
- Apply PVC primer and solvent cement (for socket joints).
- Insert the pipe fully into the socket with a 1/4-turn twist.
- Allow sufficient curing time before pressurizing the system.
Technical Documentation & Compliance Support
Available Documentation: Material Test Reports (MTR), Certificates of Conformity, dimensional inspection sheets, and product technical datasheets.
Third-Party Verification: We routinely cooperate with independent inspection agencies such as SGS and Bureau Veritas to satisfy strict municipal and governmental procurement guidelines.
Customization, Packaging & Logistics
OEM / Private Label: Custom logo embossing, bespoke product markings, custom barcoding, and private-label retail packaging are fully supported.
Export-Grade Packaging: Secured in reinforced export cartons, woven bags, or palletized configurations designed to withstand long-distance maritime and land transport.
Shipping Capabilities: Full Container Load (FCL), Less than Container Load (LCL), air cargo, and express sample delivery via major global logistics networks.
MOQ & Lead Time: Standard Minimum Order Quantity (MOQ) is 500 pieces per batch. Typical production lead time ranges from 15 to 25 days depending on order scale and customization parameters.
Frequently Asked Questions
Q: What is the minimum order quantity (MOQ) for custom colored DN100 45 degree elbows?
A: The standard MOQ for custom color formulations is typically 1,000 pieces per batch, subject to technical evaluation and masterbatch availability.
Q: Can Shanxi Kaisheng provide bilingual product markings or laser etched project codes on the fittings?
A: Yes, we support customized laser etched or molded project codes, client brand logos, and regional standard markings directly onto the fitting body.
Q: Are CAD models and 3D STEP files available for MEP BIM modeling prior to placing a bulk order?
A: Yes, fully dimensioned 2D CAD drawings and 3D STEP files can be provided immediately upon request for engineering and contractor review.
Q: What is the standard export packaging method for Full Container Load (FCL) shipments?
A: FCL orders are typically bulk packed in reinforced woven bags or export grade corrugated cartons, with palletization available upon explicit request.
Q: What commercial trade terms (Incoterms 2020) do you routinely support for international wholesale orders?
A: We regularly support FOB, CIF, CFR, EXW, and DDP shipping terms depending on the destination port and client logistics preferences.
Q: Do you provide pre shipment sample batches for laboratory testing and physical site approval?
A: Yes, free production samples (excluding international courier fees) can be dispatched within 3 to 5 business days for physical and dimensional verification.
Q: What is your standard protocol if a shipment encounters transit damage or dimensional non conformance?
A: We offer immediate replacement or credit note compensation upon receipt of official third party inspection reports or photographic evidence within 14 days of delivery.
Q: What is the typical validity period of a formal commercial quotation and material price lock?
A: Due to raw material market fluctuations, standard commercial quotations remain valid for 15 to 30 days from the date of issuance.
