Product Overview

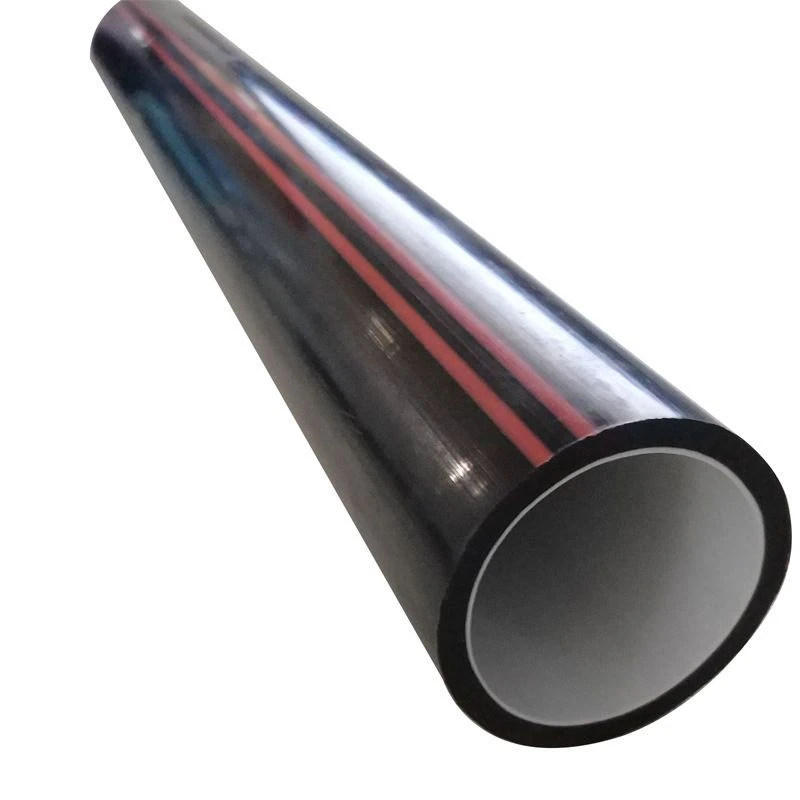

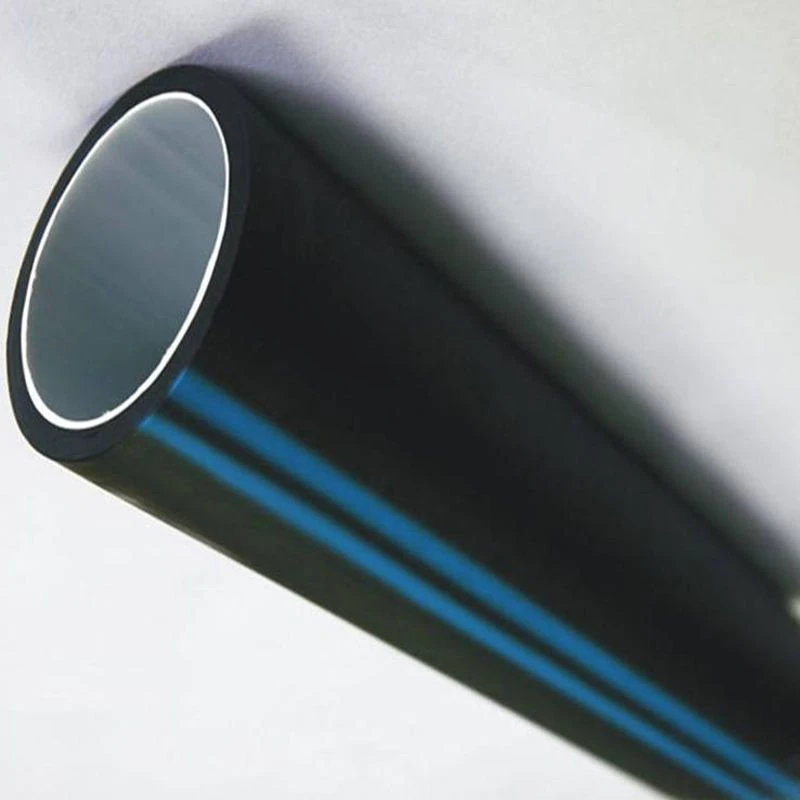

HDPE Silicon Core Tube is a communication conduit designed for fiber optic cable installation and protection. It combines a high-density polyethylene outer structure with an integrated silicon inner layer, providing a low-friction surface that helps reduce resistance during cable pulling or blowing.
Technical Specifications
|
Item |
Specification |
|
Material |
HDPE |
|
Inner Layer |
Silicon Core |
|
Application |
Fiber Optic Cable / Communication |
|
Standard Sizes |
32 / 40 / 50 / 63 mm* |
|
Supply Form |
Coil / Customized Length |
|
Standard Coil Length |
2,000 m* |
|
Color |
Black / Customized |
|
Customization |
Diameter, Wall Thickness, Length, Marking |
Key Procurement & Engineering Advantages
Tested friction coefficient ≤ 0.05, supporting blowing distances up to 50% longer while reducing splice points and installation costs.
Production shifts are tested to YD/T 848 and applicable protocols, covering MFR, reversion ≤ 3%, ESCR F0 > 48 hours, and tensile yield strength ≥ 20 MPa.
European extrusion lines provide controlled wall thickness and ovality for consistent supply to large-scale telecom projects.

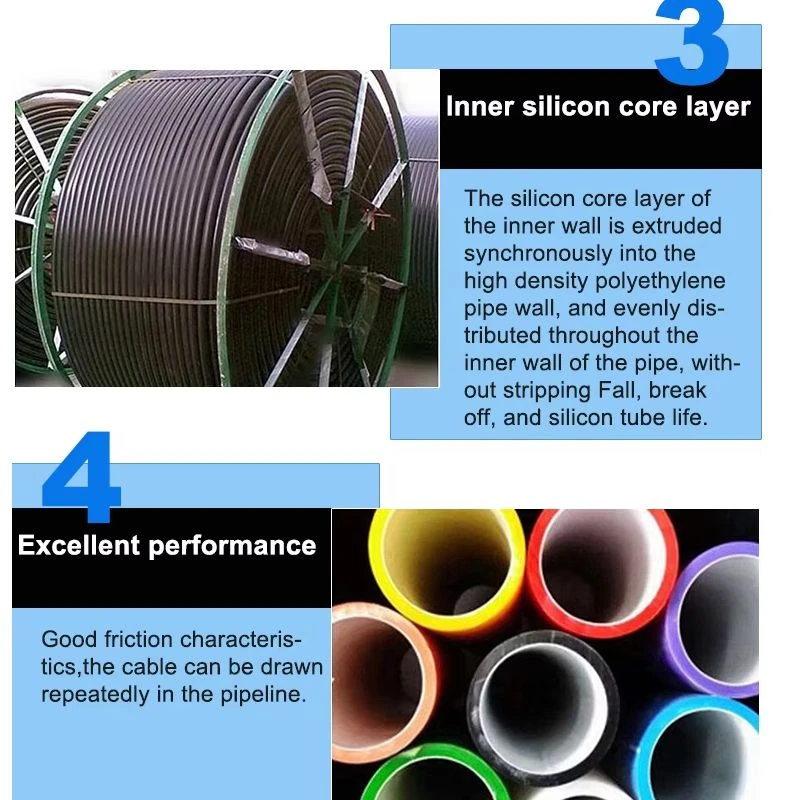

Material Architecture: HDPE Protection + Silicon Core
|
Layer |
Function |
Procurement & Engineering Relevance |
|
HDPE Outer Layer |
Mechanical impact & UV resistance |
Provides high ring stiffness and tensile strength, ideal for trenching, directional drilling, and underground sub-duct deployment. |
|
Silicon Inner Layer |
Permanent low-friction conduit path |
Prevents micro-duct scratching and eliminates the need for manual lubricant injection during field blowing operations. |
|
Integrated Co-Extrusion |
Molecular-level layer bonding |
Prevents delamination or peeling of the inner silicon layer over decades of underground thermal expansion and contraction. |
Custom Engineering & Spooling Solutions
Key Customization Options

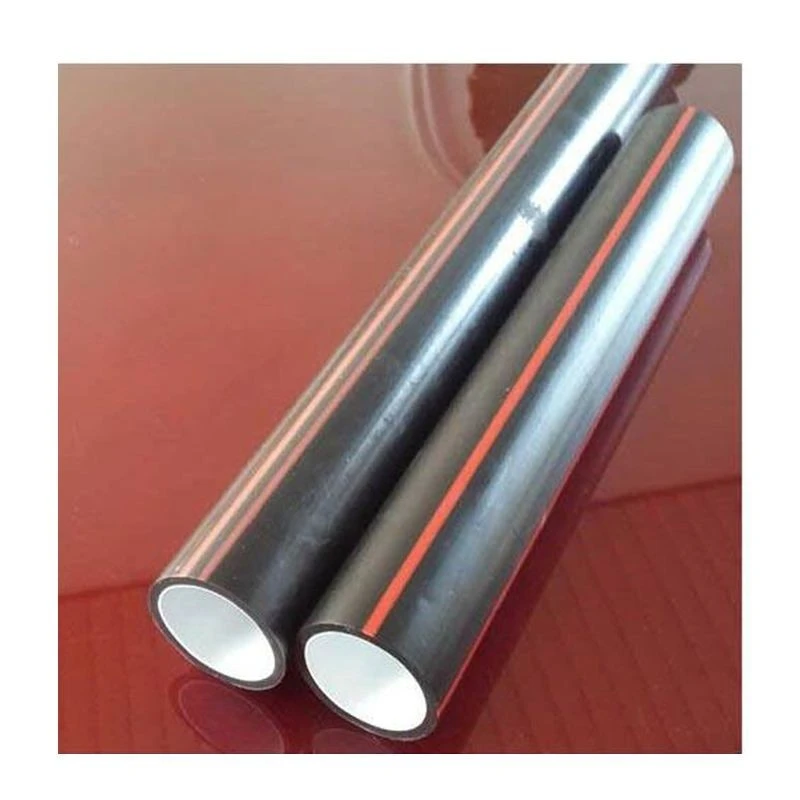

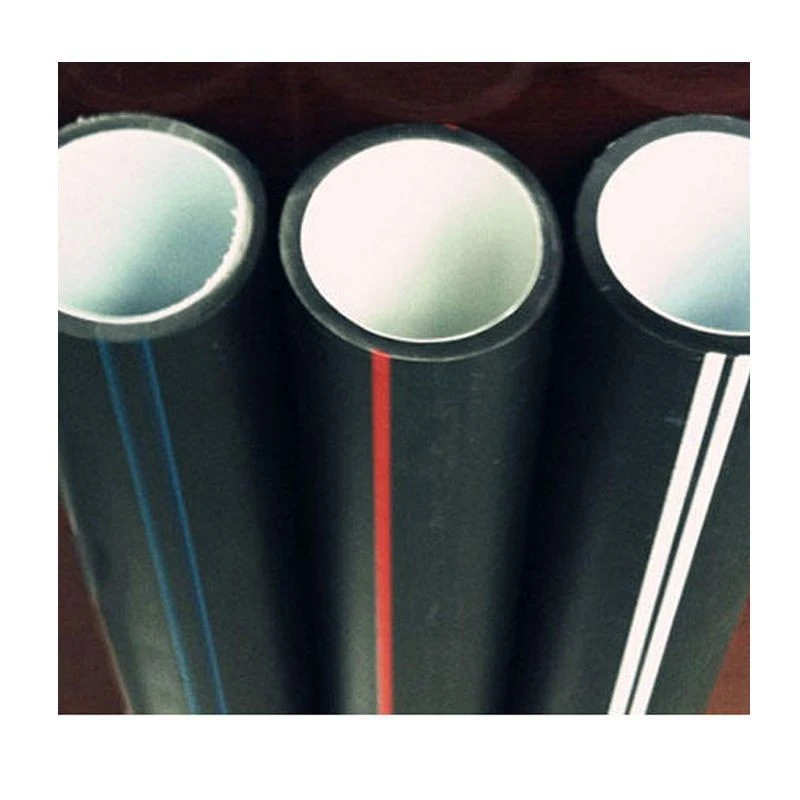

Color Coding & Co-Extruded Stripes: Custom base colors with permanent longitudinal identification stripes (red, blue, yellow, green) for multi-duct routing.
Custom Coil Lengths: Tailored continuous lengths up to 3,000 m+ to minimize splicing points and labor costs on site.
Laser Meter Marking: Wear-resistant laser printing for clear tracking of footage, batch numbers, and project codes.
Climatic Adaptations
High UV / Desert Zones: Optimized antioxidant and carbon black ratios for superior UV resistance.
Cold Climates: Enhanced low-temperature impact strength to prevent winter installation brittleness.

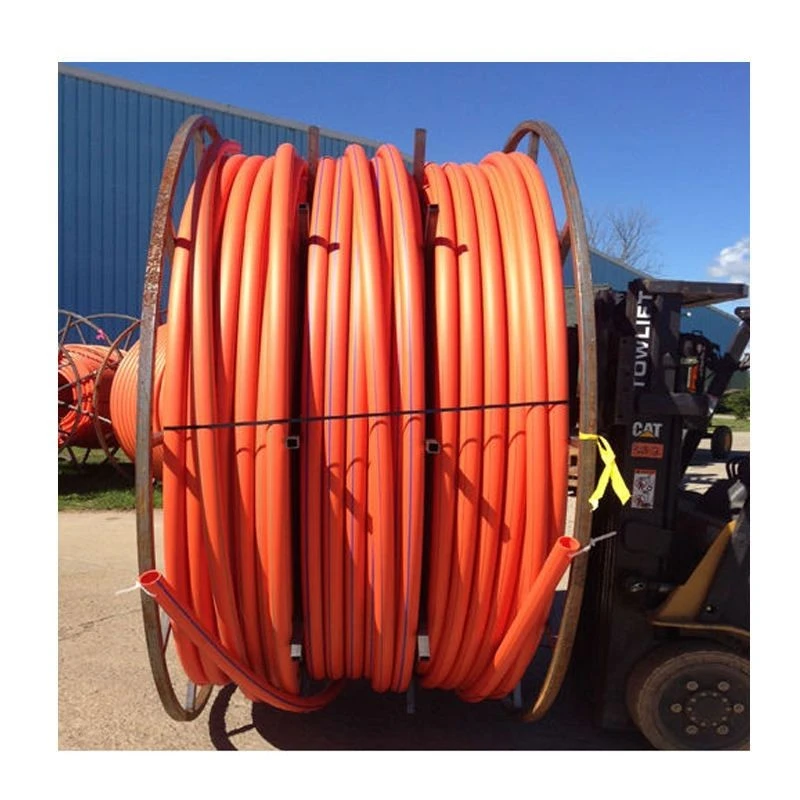

Spooling & Logistics
Heavy-Duty Drums: Fumigated wooden or reinforced steel-wooden drums built for harsh terrain and international freight.
Seamless Deployment: Drum dimensions engineered for standard cable-laying equipment to ensure smooth pay-off.
Engineering Support:
Send us your technical data sheet or tender requirements for a tailored customization plan and sample evaluation.
Installation & Application: Core Execution
★Handling & Setup
Acclimatization: Rest coils on-site for 24 hours to stabilize flexibility.
Tension Limits: Keep pulling force below the outer shell yield strength.
Bend Radius: Maintain a minimum radius of 20 times the outer diameter.
★Blowing & Sealing
Low Friction: The silicon layer (≤0.05) eliminates manual liquid lube.
Pneumatic Range: Match compressor pressure to extend blowing distance by 50%.
End Protection: Install dedicated end plugs immediately after cutting.
★Execution & Backfill
HDD Pullback: Use reamer sizes 1.3 to 1.5 times the duct diameter.
Trench Bedding: Backfill with fine, rock-free soil to distribute loads evenly.
Frequently Asked Questions
Q: Do your tubes comply with international standards like YD/T 848 and ISO?
A: Yes. Our production follows YD/T 848 telecom standards, with raw materials and physical metrics meeting ISO 4427 and ASTM D3350 benchmarks. Third-party inspection reports (SGS, BV) are available upon request.
Q: Can we customize colors and meter markings?
A: Yes. We support custom stripe colors for easy routing identification, along with laser-printed meter markings and company logos.
Q: What is the typical lead time for a 40ft container?
A: Standard production lead time is 10 to 15 days upon deposit confirmation, supported by our high-output extrusion lines.
Q: What payment terms do you accept for new global buyers?
A: We typically accept T/T (30% deposit with balance against the Bill of Lading copy) and irrevocable L/C at sight for qualifying volume orders.
Q: Can you provide samples for raw material and friction testing before placing a bulk order?
A: Yes, free short-length sample segments can be provided upon request for laboratory evaluation, with freight collect via your courier account.
Q: Are these ducts suitable for horizontal directional drilling (HDD) installation?
A: Yes, the high tensile strength and impact resistance of our HDPE outer layer make them ideal for trenchless HDD and micro-trenching projects.
