Product Overview
Engineered for demanding environments, our HDPE Pipe Dredging is manufactured from virgin PE100 resin for hydraulic transportation of abrasive materials such as sand, sediment, tailings, and sludge. It is widely used in marine construction, river desilting, mining slurry transport, and coastal land reclamation projects.
HDPE Dredging Pipe Specifications
|
Item |
Details |
|
Material |
HDPE |
|
Diameter Range |
DN110 / DN160 / DN200 / DN300 / DN400 / DN500 / DN630 / DN800 / DN1000 / DN1200 |
|
Pressure Rating |
0.6MPa / 0.8MPa / 1.0MPa / 1.25MPa / 1.6MPa |
|
Pipe Type |
Buried wear-resistant straight pipe, marine floating coiled pipe |
|
Standard Length |
Straight pipe: 6m |
|
Coiled Pipe Length |
50m / 100m / 200m |
|
Color |
Black / Customized |
|
Connection |

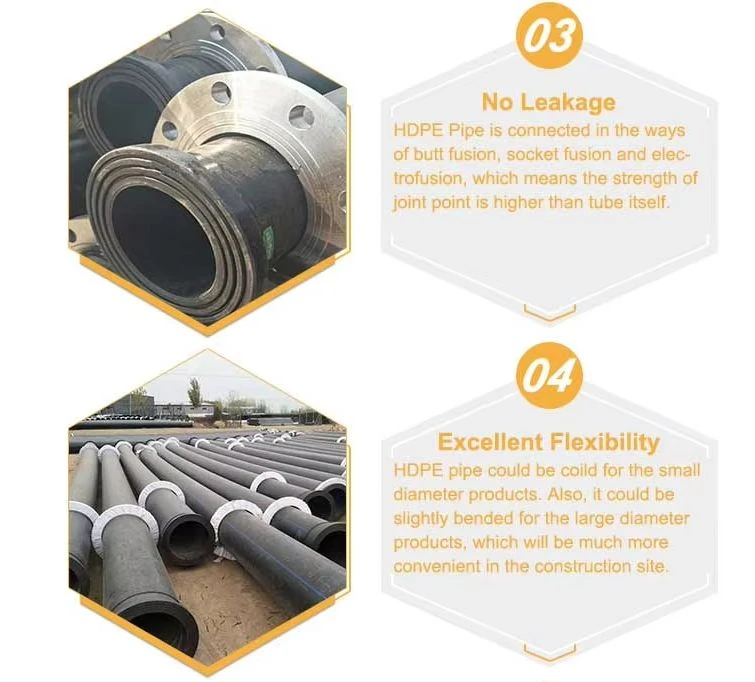

Flange connection / Customized connection solutions |
Engineered for Demanding Dredging Conditions
Optimized for transporting sand, gravel, tailings, and sludge. PE100 material structure provides extended service performance compared with conventional steel pipes.
Designed for offshore dredging operations, absorbing wave movement and mechanical stress with a high buoyancy-to-weight ratio for efficient floating systems.
Smooth inner surface (C = 150) reduces material buildup, lowers flow resistance, and supports efficient slurry transportation.
Enhanced with 2%–2.5% carbon black and UV stabilizers to improve resistance against sunlight, salt spray, and temperature changes.
Two Pipeline Options for Different Project Requirements

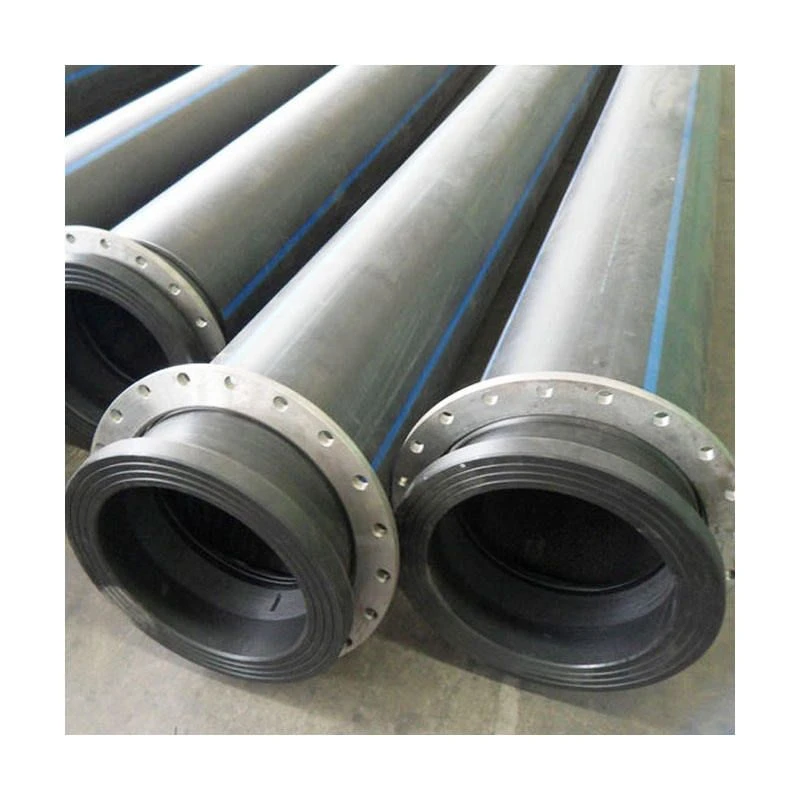

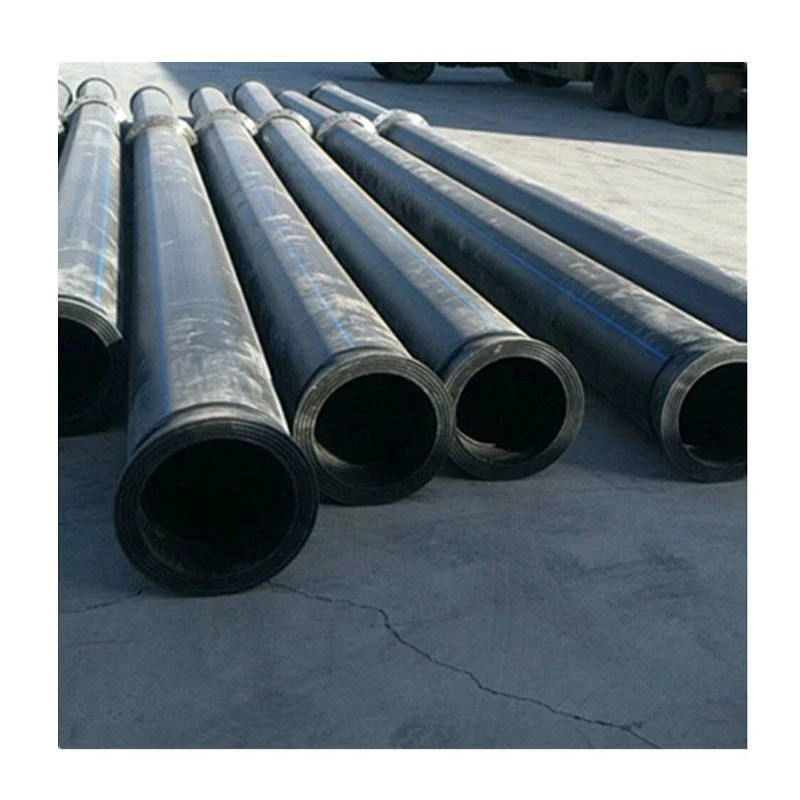

Buried Wear-Resistant Straight Pipe
Engineered for fixed land-based systems and long-distance transport networks. These straight HDPE pipes offer exceptional structural integrity against soil pressure and inner abrasion caused by high-velocity slurry flow.

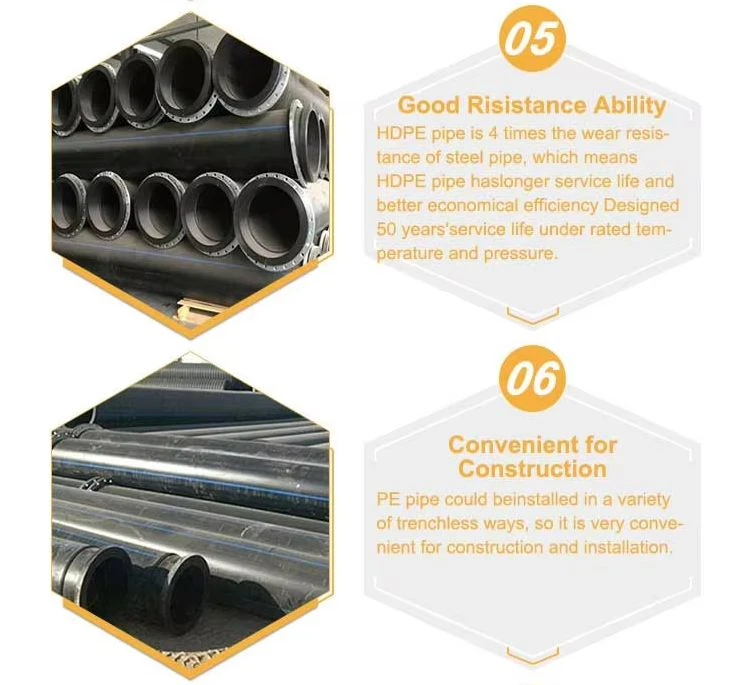

Key Advantages: Excellent wear resistance, smooth interior wall with ultra-low friction coefficient, high chemical resistance, and a design life exceeding 50 years under normal operating conditions.
Typical Applications
- Mining tailings and slurry transportation pipelines
- Inland river and lake deepening projects
- Coastal land reclamation infrastructure
- Long-distance sand and aggregate pumping

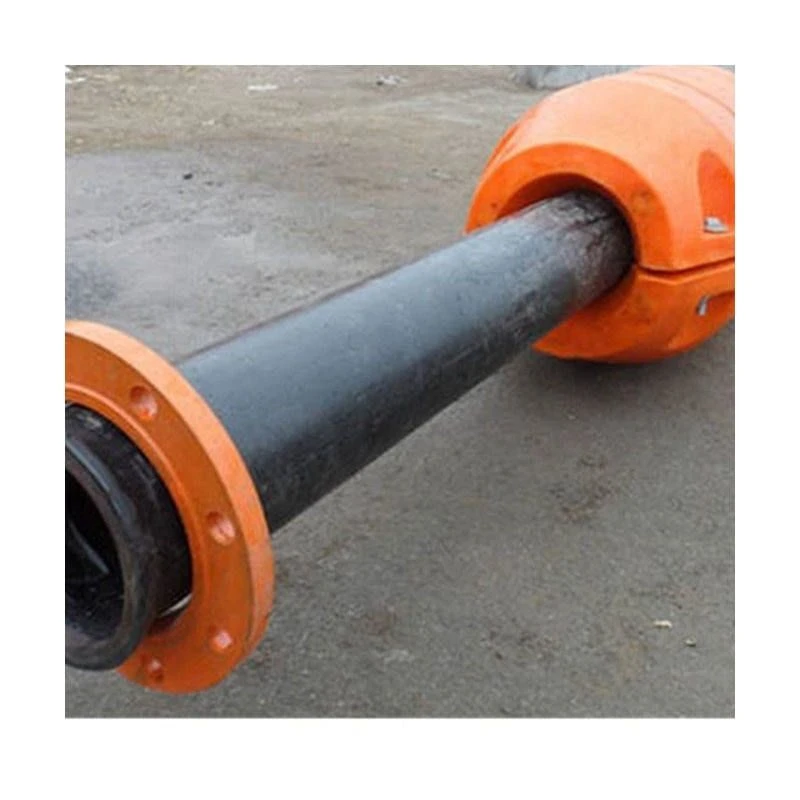

Marine Floating Coiled Pipe
Designed for offshore, open-water, and shallow marine operations where flexibility, easy deployment, and wave-adapting mobility are vital.
Key Advantages: High buoyancy-to-weight ratio, superior flexibility to absorb wave action and currents, rapid deployment and retrieval, and strong UV stabilization for harsh marine environments.
Typical Applications

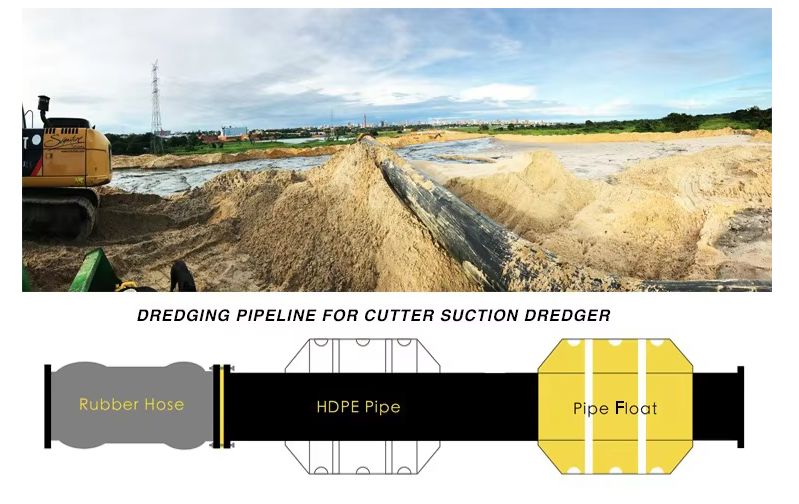

- Offshore cutter suction dredger (CSD) discharge lines
- Port and harbor construction and deepening
- Temporary bypass and floating slurry discharge systems
Comprehensive Manufacturing & OEM/ODM Support

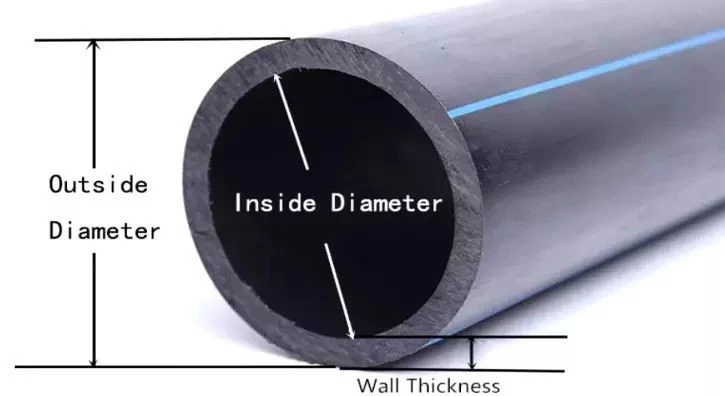

Custom Dimensions & Wall Thickness: Customized SDR ratings and inner diameter matching for specific head-pressure and pump capacities.
Complete System Integration: One-stop sourcing for matching accessories including steel backing flanges, rubber gaskets, bolts, and marine foam-filled floaters/buoys.
Logistics & Packaging Solutions: Professional loading and container packing optimization for large-diameter pipelines (DN800–DN1200) to minimize international shipping costs.
Field Installation & Engineering Support Services
Step 1: Hydraulic & Pressure Consultation
Share your pump capacity, slurry density, and pumping distance. Our engineers recommend suitable pipe diameter and SDR based on flow and pressure requirements.
Step 2: Flange & Connection Matching
We supply pre-fabricated stub ends and backing flanges compatible with ANSI, DIN, or JIS standards to simplify on-site connections.
Step 3: Remote Technical Guidance
Receive installation manuals and video guidance covering floating collar assembly, gasket bolt tightening, and safe handling of large-diameter coils.
Frequently Asked Questions
Q: What is the service life of HDPE dredging pipes?
A: Made from virgin PE100 resin, they offer a design life of 50+ years, providing superior resistance to abrasion and corrosion compared to steel alternatives.
Q: How are marine floating HDPE pipes connected on-site?
A: They are typically connected using stub ends with backing steel flanges, bolts, and rubber gaskets, or via flexible quick-release couplings for rapid offshore deployment.
Q: Do you support third-party factory inspections?
A: Yes. We welcome inspections by SGS, BV, or TUV, and provide complete factory test reports (hydrostatic pressure, dimensions, and material density) before shipment.
Q: What is the difference between straight pipes and floating coiled pipes?
A: Straight pipes are rigid and ideal for fixed land-based slurry lines, while floating coiled pipes offer high flexibility and buoyancy for offshore marine operations.
Q: What accessories are included for a complete dredging pipeline system?
A: We supply matching system components, including steel backing flanges, rubber gaskets, bolts, nuts, and high-buoyancy marine floaters.
Q: How do you handle shipping and loading for large-diameter pipes (DN800–DN1200)?
A: Smaller pipes are nested inside larger ones to maximize container space, while large-diameter sizes are shipped via open-top containers or bulk cargo vessels to minimize freight costs.
Q: What are your supported trade terms and payment methods?
A: We support standard trade terms including FOB, CIF, and DDP (shipping globally). For payment, we accept T/T (Telegraphic Transfer) and L/C at sight. Flexible terms can be discussed for long-term partners.
