Shanxi Kaisheng Plastic Co., Ltd. is one of the most reliable manufacturers and suppliers of hdpe corrugated pipe double wall in China. Please feel free to buy CE approved hdpe corrugated pipe double wall in stock here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.
Product Overview
The HDPE Corrugated Pipe Double Wall is engineered for non-pressure underground drainage, stormwater management, municipal sewer systems, and heavy-duty infrastructure projects. Designed for engineers and contractors who demand both high structural integrity and optimal hydraulic performance under varying soil and load conditions.
Product Specifications
|
Parameter |
Specification |
|
Product Name |
HDPE Double Wall Corrugated Pipe |
|
Material |
HDPE (High-Density Polyethylene) |
|
Nominal Diameter |
DN200, DN300, DN400, DN500, DN600, DN800, DN1000, DN1200, DN1500, DN2000, DN3000 |
|
Ring Stiffness |
SN4, SN8, SN12.5, SN16 |
|
Standard Length |
6 m per piece |
|
Customized Length |
3–12 m |
|
Pipe Structure |
Corrugated outer wall with smooth inner wall |
|
Sealing Components |
Elastic rubber sealing rings |
|
Connection Components |
Couplings |
|
Supporting Fittings |
Elbows, tees, plastic inspection wells, end caps |
|
Typical Applications |

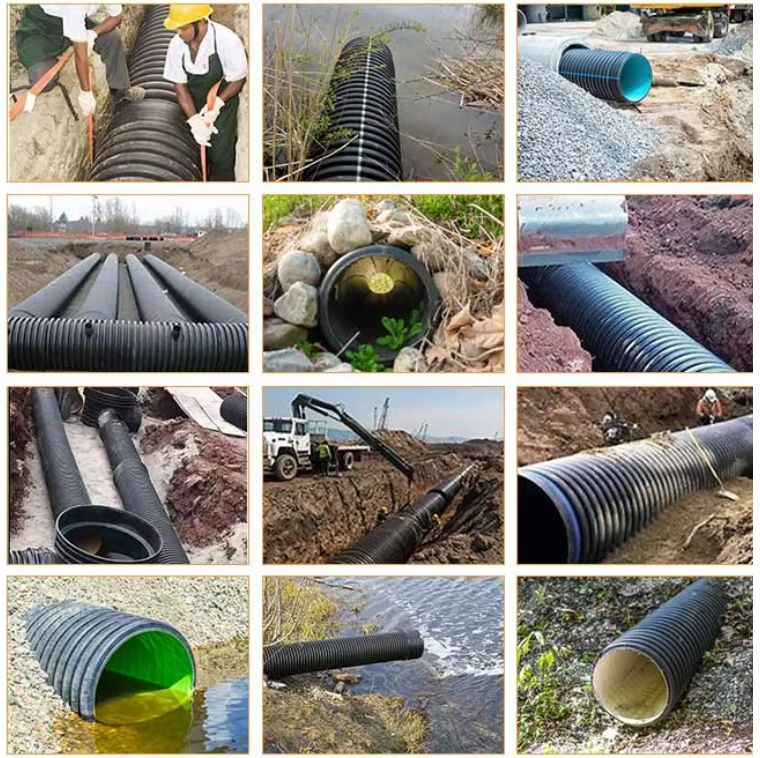

Underground drainage, stormwater, sewer and infrastructure projects |
Why Global Contractors Choose Our HDPE Pipes
Withstands aggressive soil chemistries (pH 2–12) and municipal biogenic H2S gas corrosion.
Extruded strictly from high-grade virgin HDPE, ensuring long-term molecular stability. Delivers a 50+ year service life under proper EN 1610 / ASTM D2321 backfill guidelines.
Significantly lighter than concrete or ductile iron alternatives. Reduces heavy-equipment dependency (fewer cranes needed) and accelerates daily trench-laying cycles.

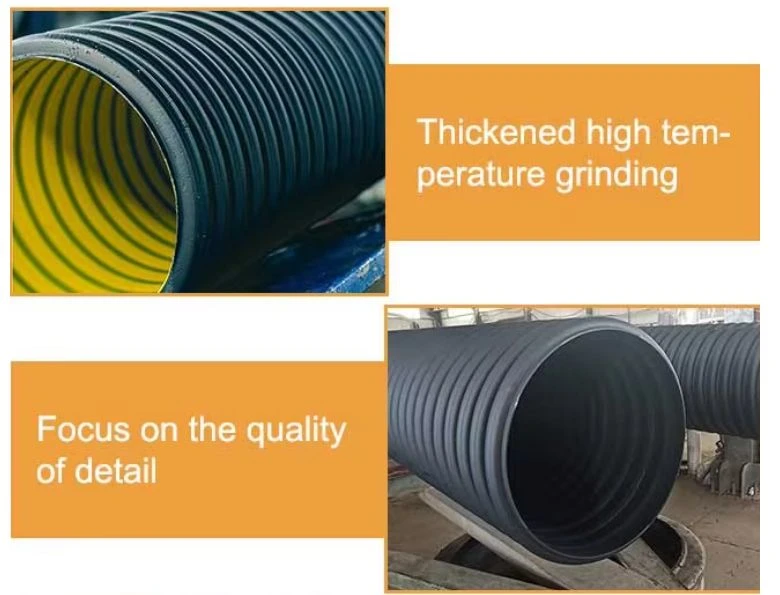

What the Double-Wall Structure Delivers

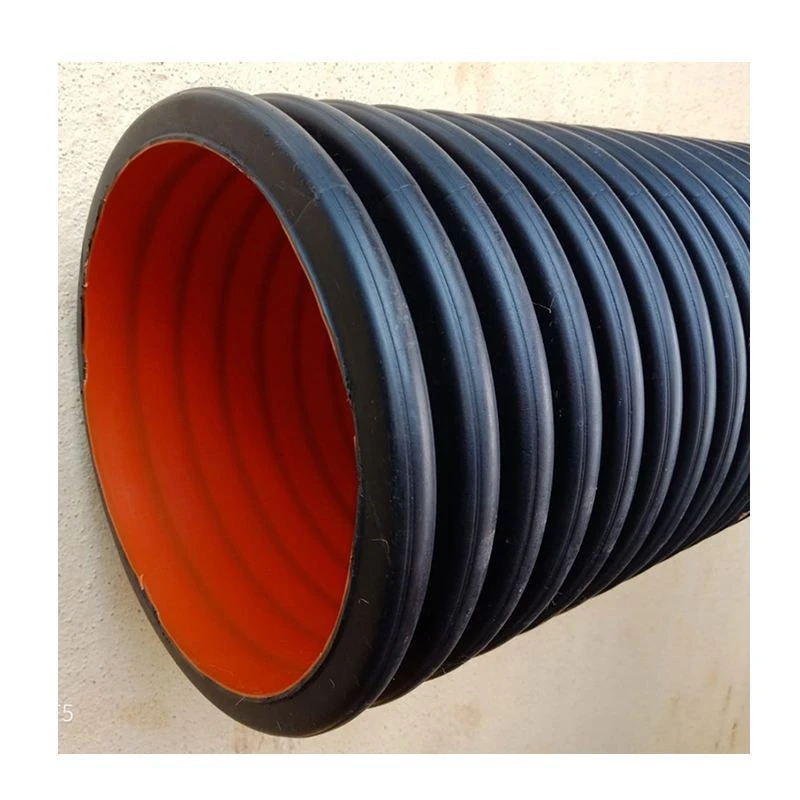

Corrugated Outer Wall - Structural Support
The corrugated outer wall increases ring stiffness while maintaining an efficient pipe structure. Available SN4 to SN16 stiffness grades allow buyers to select suitable options according to burial depth, soil conditions and project loading requirements.
Smooth Inner Wall - Efficient Flow Surface
The smooth inner wall provides a continuous flow path for drainage and sewer applications, helping improve hydraulic performance and reduce flow resistance. This design is suitable for gravity drainage systems where consistent water flow is required.
Choose the Ring Stiffness According to the Project
|
Ring Stiffness |
Typical Procurement Consideration |
|
SN4 |
Suitable for project conditions where a lower stiffness class meets the design requirements |
|
SN8 |
A commonly specified stiffness level for many buried drainage applications |
|
SN12.5 |
Considered where project design calls for a higher stiffness class |
|
SN16 |
Available for applications requiring a higher specified ring stiffness |
Connection System & Supporting Components
Socket & Spigot Joint with Rubber Sealing Ring
The socket and spigot connection uses elastic rubber sealing rings to provide a secure joint between pipe sections. The flexible sealing design helps accommodate normal installation conditions and ground movement when installed according to project requirements.
Couplings & Custom Connection Options
Couplings and other connection solutions can be supplied for specific project layouts, customized pipe lengths or special installation requirements. Available options depend on pipe diameter, connection design and application conditions.
Available Accessories
- Elastic rubber sealing rings
- Couplings
- Elbows
- Tees
- Plastic inspection wells
- End caps
Frequently Asked Questions
Q: What is HDPE Gas Pipe used for?
A: HDPE Gas Pipe is primarily used for underground transportation and distribution of natural gas and other gaseous fuels in residential, commercial, industrial, and municipal gas networks.
Q: What materials are available?
A: We offer HDPE Gas Pipes manufactured from premium PE100 and PE100-RC virgin polyethylene materials.
Q: Which international standards do your products comply with?
A: Our products can be manufactured according to ISO 4437, EN 1555, ASTM D2513, AS/NZS 4130, and other customer-required standards.
Q: What pipe sizes can you supply?
A: We provide diameters ranging from DN20 to DN1200, with customized sizes available for specific projects.
Q: Which connection methods are supported?
A: HDPE Gas Pipes can be connected using butt fusion or electrofusion, creating secure and leak-free pipeline systems.
Q: Can you provide customized products?
A: Yes. We support OEM manufacturing, including customized dimensions, SDR classes, colors, printing, packaging, and project-specific requirements.
Q: How long is the service life?
A: Under normal operating conditions and proper installation, HDPE Gas Pipes are designed for a service life exceeding 50 years.
Q: Are your pipes suitable for underground installation?
A: Yes. HDPE Gas Pipes are specifically designed for underground gas distribution, offering excellent corrosion resistance, flexibility, and long-term reliability.
Q: Do you support project-based customization?
A: Yes. We provide customized HDPE Gas Pipes according to project specifications, including diameter, SDR class, pressure rating, color, marking, and packaging requirements.
Q: Can you provide quality documents?
A: Yes. Quality inspection reports, material certificates, and related documents can be provided according to customer requirements.
