Product Overview

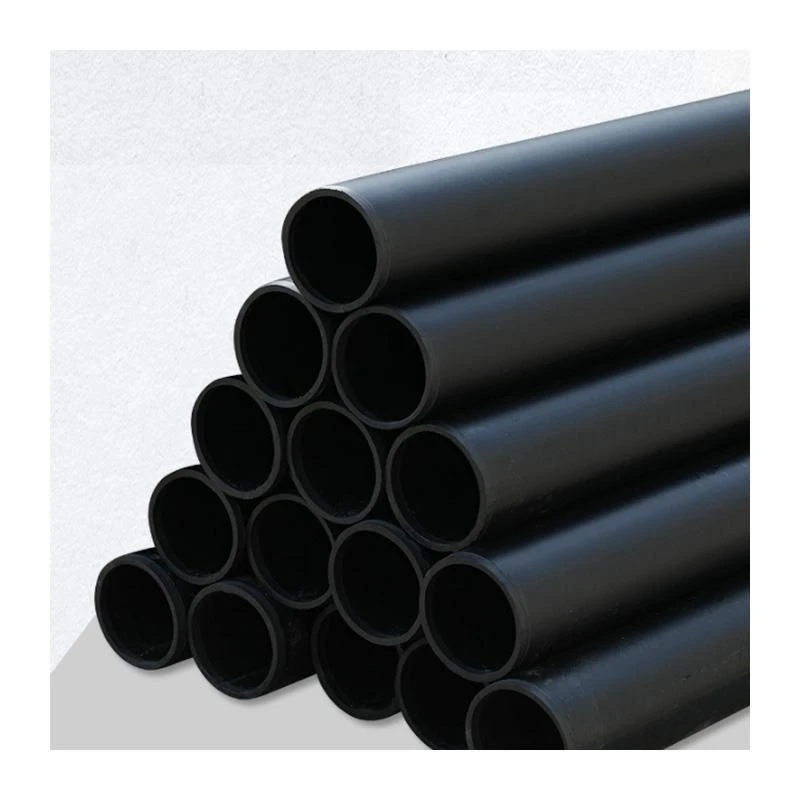

Steel Wire Reinforced PE Pipe is a composite pressure pipe made from PE100 and high-strength steel wire reinforcement. It is designed for high-pressure water transmission, industrial pipelines, mining applications, and projects requiring improved pressure performance and dimensional stability.
Technical Specifications
|
Parameter |
Specification |
|
Product Name |
Steel Wire Reinforced PE Pipe |
|
Pipe Structure |
Multi-layer Composite Structure with Steel Wire Reinforcement |
|
Material |
PE100 / HDPE + High-strength Steel Wire |
|
Diameter Range |
DN50mm - DN2000mm |
|
Pressure Rating |
PN0.6MPa - PN3.5MPa (Customized) |
|
SDR Range |
Customized According to Project Requirements |
|
Length |
Standard 6m / 12m or Customized |
|
Operating Temperature |
-40℃ to +60℃ |
|
Connection Method |
Electro Fusion / Flange Connection |
|
Inner Layer |
Smooth PE Pressure Layer |
|
Reinforcement Layer |
Spiral Steel Wire Mesh |
|
Outer Layer |
Protective PE Layer |
|
Service Life |
50+ Years Under Normal Operating Conditions |
Key Engineering Benefits
High Pressure Capability
The steel wire reinforcement layer increases the pipe's pressure resistance and reduces deformation under operating pressure.
Corrosion Resistance
The PE structure provides resistance against corrosion, chemicals, and moisture, helping reduce maintenance requirements during long-term operation.
Efficient Fluid Flow
The smooth inner surface minimizes friction loss and supports stable fluid transportation.
Wide Application Range

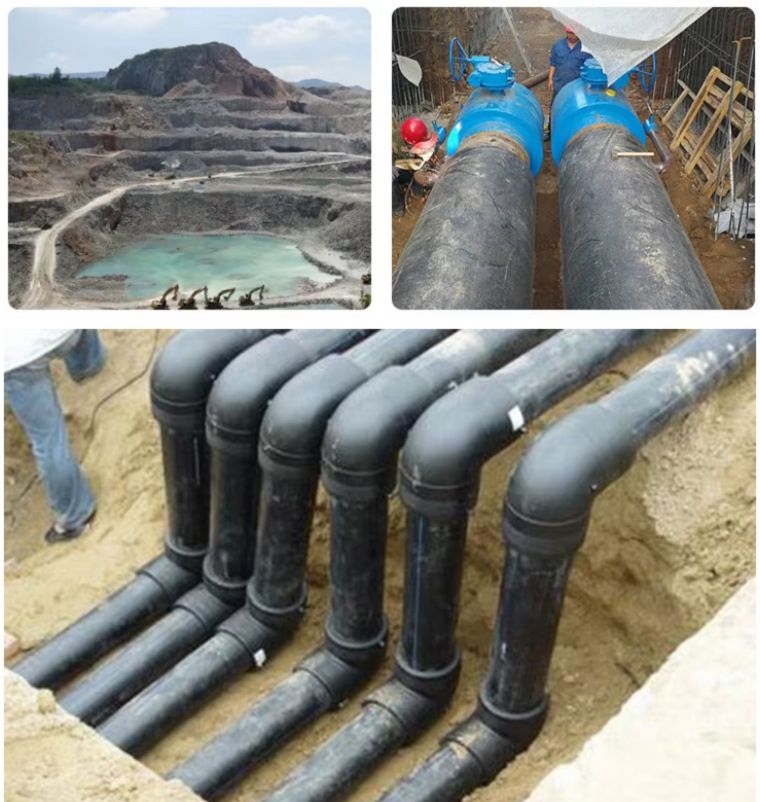

Suitable for underground pipelines, mining systems, industrial water transportation, and other projects requiring reinforced pressure pipes.

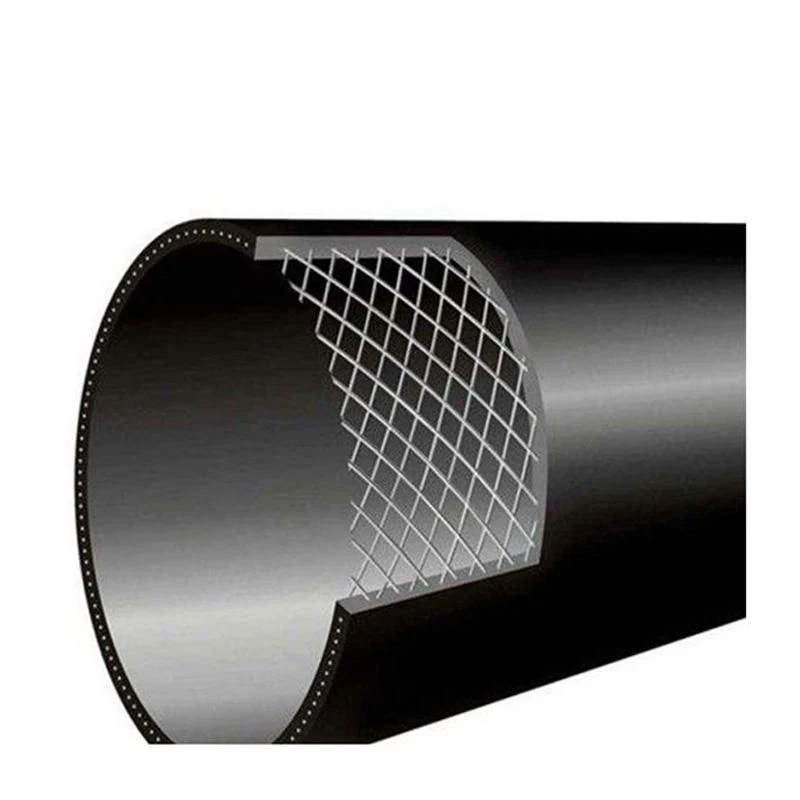

Product Structure

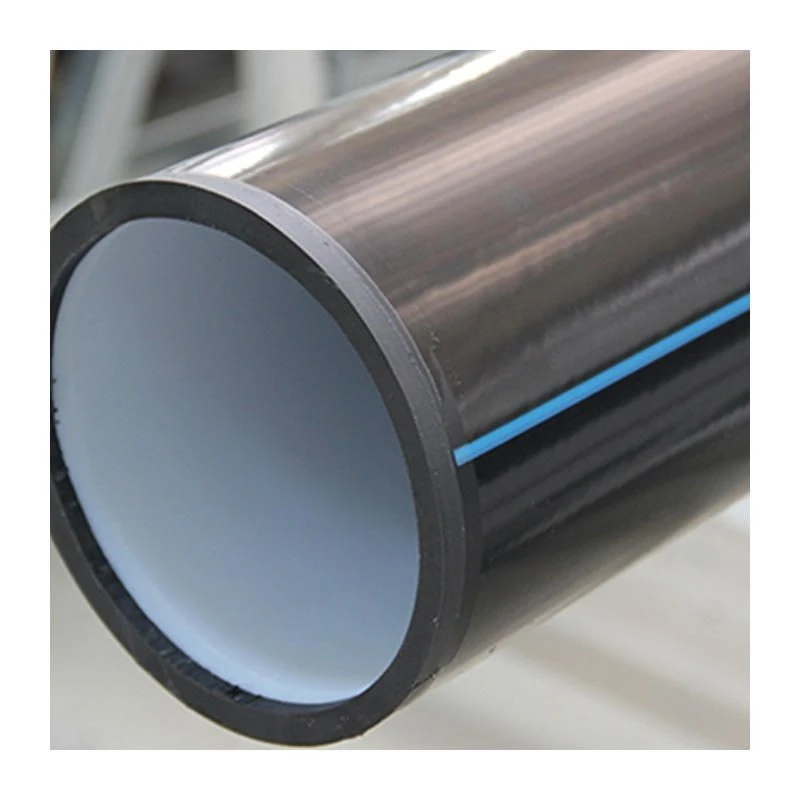

Inner PE Layer
The inner layer is manufactured from high-quality PE100 resin, providing:
- Smooth inner surface for reduced flow resistance
- Excellent chemical resistance
- Non-corrosive performance
- Reliable fluid transportation efficiency
Steel Wire Reinforcement Layer
The high-strength steel wire mesh reinforcement layer provides:
- Increased pressure-bearing capacity
- Improved dimensional stability
- Reduced pipe expansion under pressure
- Enhanced resistance to external loads
Outer PE Protective Layer
The external PE layer protects the reinforcement structure from:
- Moisture penetration
- Environmental corrosion
- Mechanical damage
- External impact

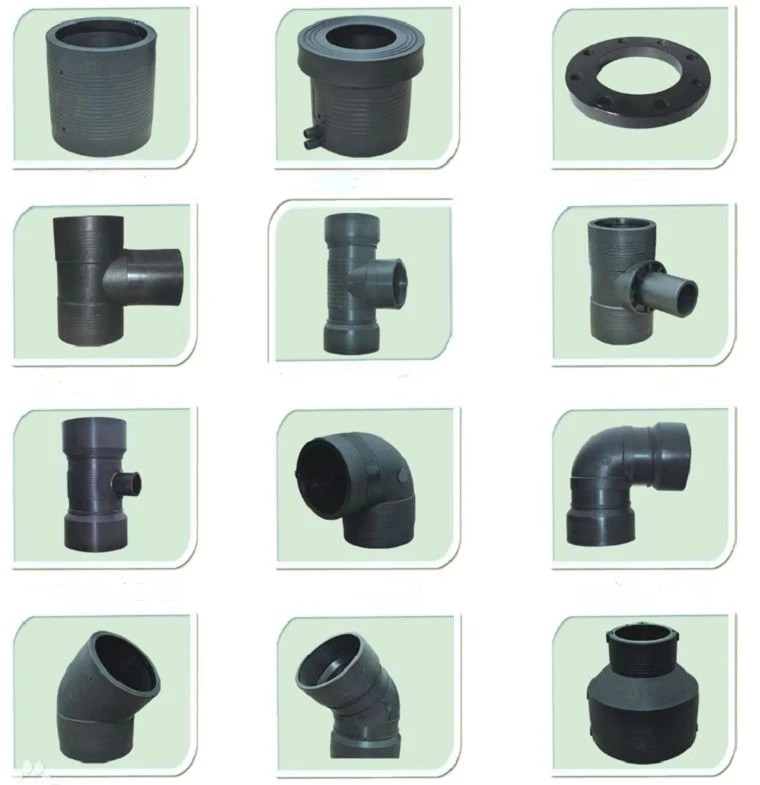

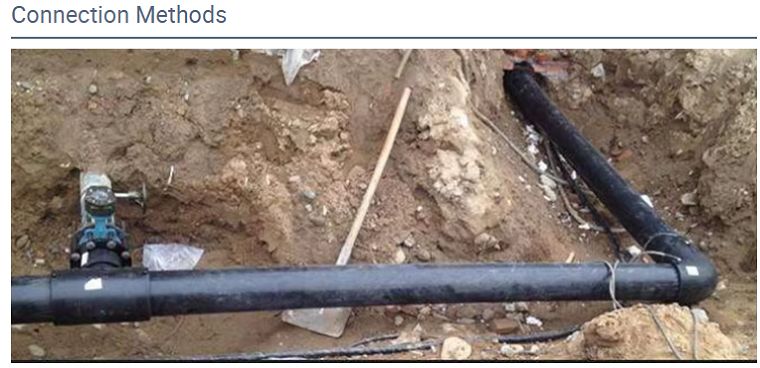

Connection Methods
Electro Fusion Connection
Electrofusion connection provides:
Leak-proof joints
High connection reliability
Excellent pressure performance
Suitable for underground pipeline systems
Flange Connection
Flange connections are suitable for:
Equipment connections
Maintenance sections
Pipeline transitions
Manufacturing Process
Raw Material Inspection
PE100 resin and steel wire materials are inspected before production to verify material performance and consistency.

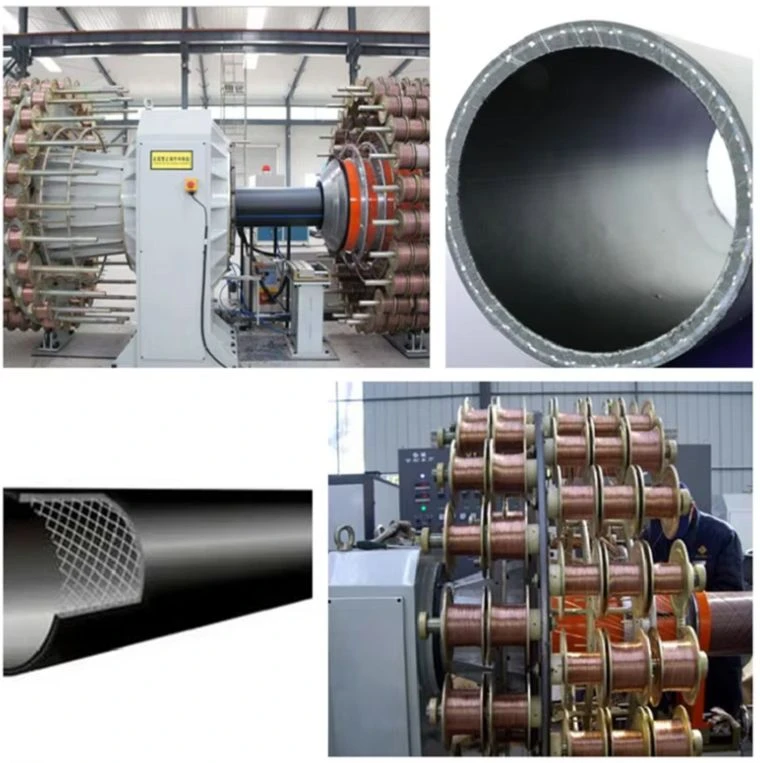

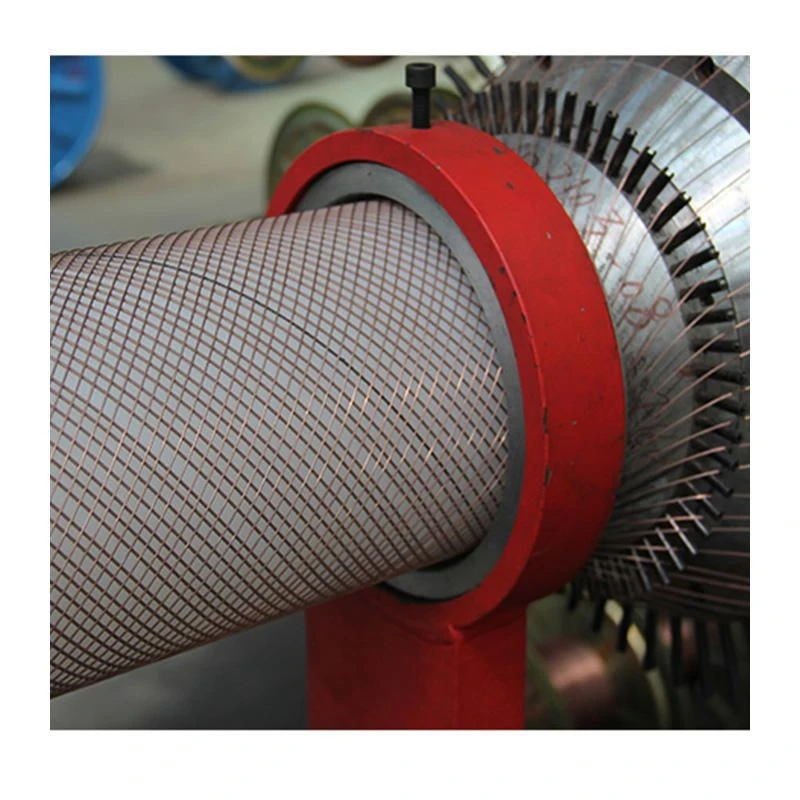

Steel Wire Reinforcement Forming
High-strength steel wire is arranged into a reinforcement structure according to pipe design requirements.
Composite Extrusion
The PE layers and steel wire reinforcement are integrated through a controlled extrusion process.
Cooling and Dimension Calibration
The pipe is cooled and calibrated to maintain required dimensions and structural accuracy.
Pressure Testing and Final Inspection
Finished pipes are tested to confirm pressure performance and product quality before delivery.
Quality Control & Testing
Raw Material Testing
PE resin inspection
Steel wire strength verification
Production Inspection
Diameter measurement
Wall thickness inspection
Layer bonding inspection
Performance Testing
Hydrostatic pressure testing
Tensile strength testing
Structural integrity testing
Leakage testing
Custom Manufacturing Capability
|
Custom Option |
Available Solutions |
|
Pipe Diameter |
DN50 - DN2000mm |
|
Pressure Rating |
Customized |
|
Pipe Length |
Customized |
|
Connection Type |
Electro Fusion / Flange |
|
Material Grade |
PE100 / Customized |
|
Color |
Customized |
|
Packaging |
Export Standard Packaging |
Engineering Support
Our engineering services include:
Pipe specification recommendation
Pressure rating selection
Pipeline application analysis
Connection solution guidance
Installation recommendations
Project technical support
Packaging & Delivery
To ensure safe transportation, pipes are prepared using export-standard packaging methods.
Packaging solutions include:
- Protective pipe bundling
- End protection
- Moisture-resistant packaging
- Container loading optimization
Frequently Asked Questions
Q: What is the difference between Steel Wire Reinforced PE Pipe and standard HDPE pipe?
A: Steel Wire Reinforced PE Pipe combines PE100 material with a high-strength steel wire reinforcement layer, providing higher pressure resistance and better dimensional stability than standard HDPE pipes.
Q: What pressure ratings are available for Steel Wire Reinforced PE Pipes?
A: Pressure ratings can be customized according to pipe diameter, reinforcement structure, and application requirements. We manufacture reinforced PE pipes for different pressure conditions, including municipal water supply, industrial pipelines, and mining applications.
Q: What is the expected service life of Steel Wire Reinforced PE Pipe?
A: Under proper installation and operating conditions, Steel Wire Reinforced PE Pipes can provide a service life of 50 years or more.
Q: Do you provide samples or technical documents before bulk orders?
A: Yes. We can provide product samples, technical specifications, inspection reports, and other documents required for project evaluation and supplier qualification.
Q: How do I choose the suitable pressure rating for Steel Wire Reinforced PE Pipe?
A: The pressure rating depends on several factors, including pipe diameter, operating pressure, temperature, installation conditions, and application requirements.
Q: What is the difference between Steel Wire Reinforced PE Pipe and standard HDPE pipe?
A: Steel Wire Reinforced PE Pipe uses a high-strength steel wire mesh layer between PE layers, which provides higher pressure capacity and improved dimensional stability compared with conventional HDPE pipes.
Q: Can Steel Wire Reinforced PE Pipe be used for underground installation?
A: Yes. The pipe is suitable for underground pipeline systems. The PE outer layer protects the reinforcement structure from moisture and environmental exposure, while the reinforced structure provides additional pressure resistance.
Q: Can Steel Wire Reinforced PE Pipe be customized for specific projects?
A: Diameter, pressure rating, length, connection type, and other specifications can be customized according to project requirements.
