Shanxi Kaisheng Plastic Co., Ltd. is one of the most reliable manufacturers and suppliers of pe corrugated pipenforced pe pipe in China. Please feel free to buy CE approved pe corrugated pipenforced pe pipe in stock here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.
Product Overview

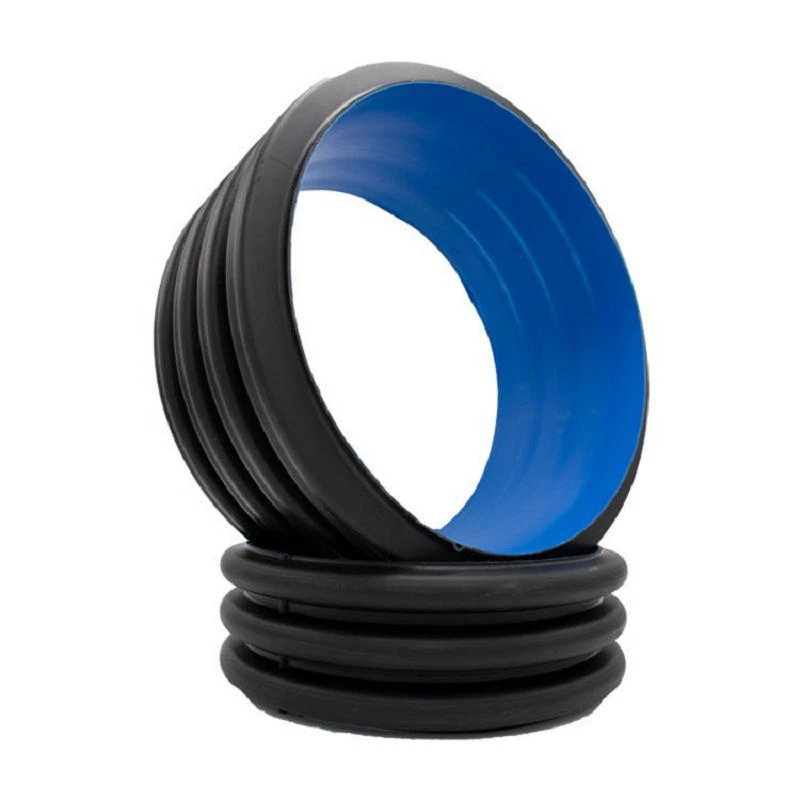

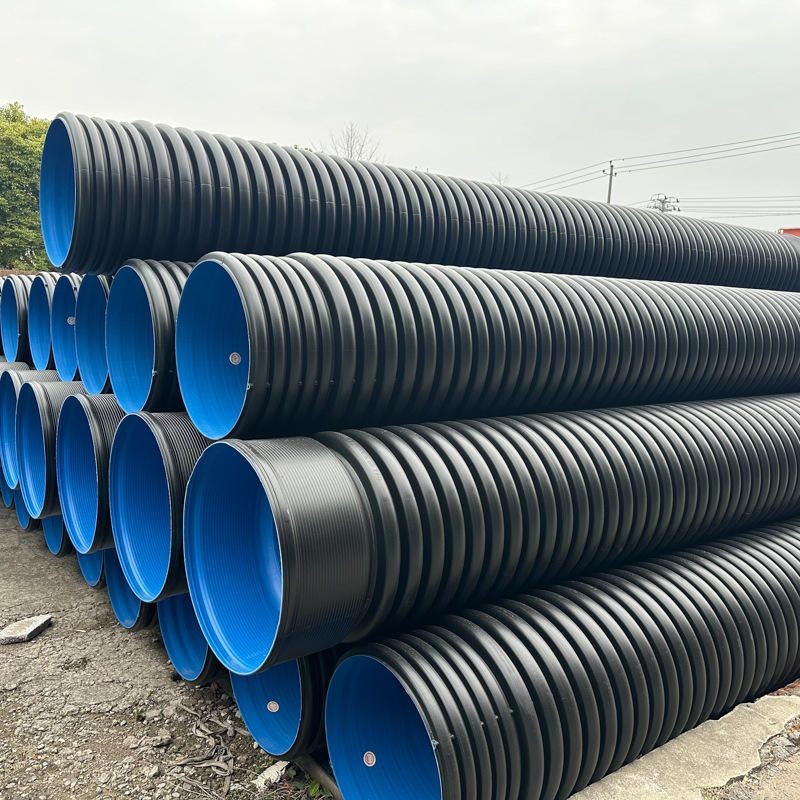

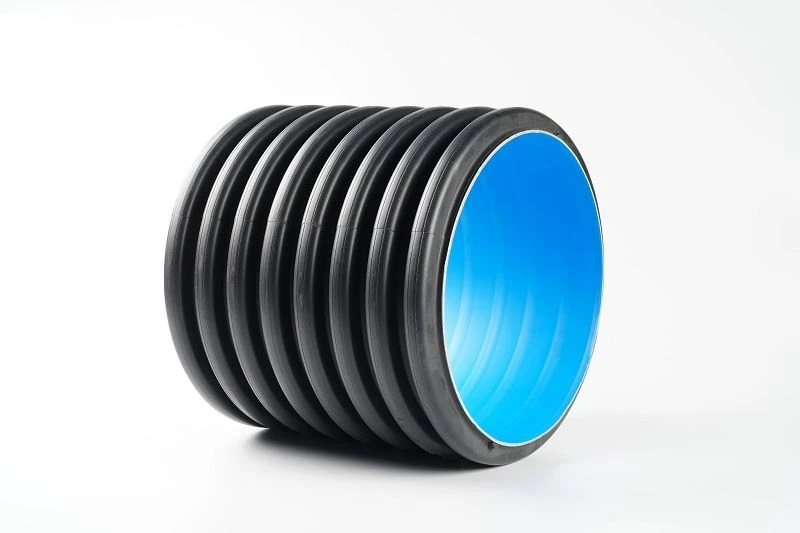

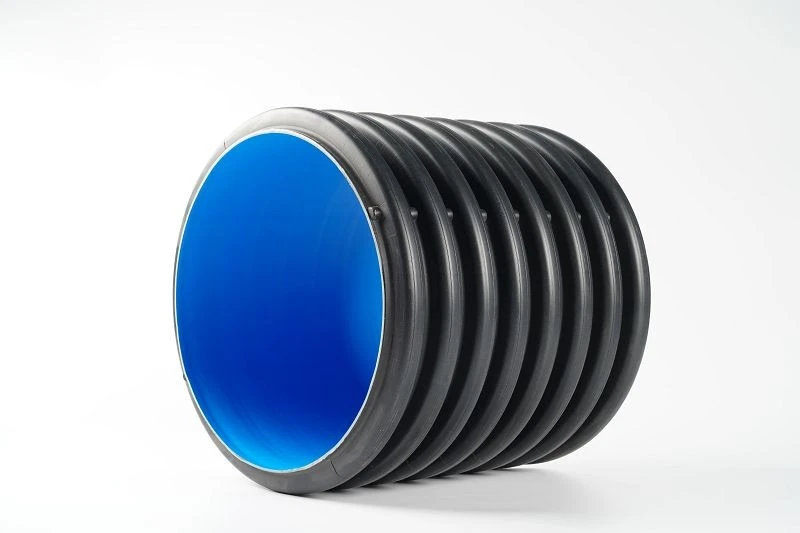

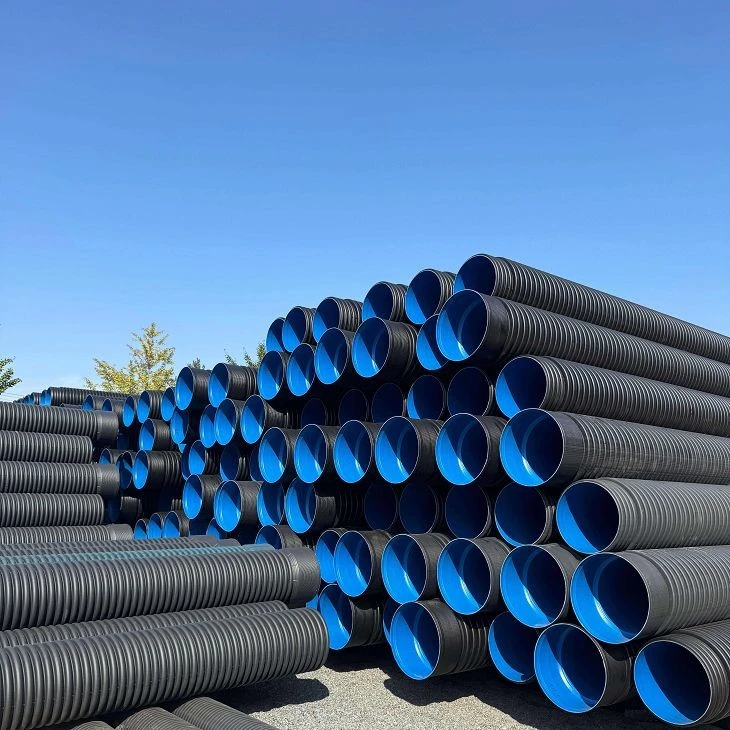

Our PE Corrugated Pipe is a high-performance drainage and underground pipeline solution designed for municipal, infrastructure, agricultural, and industrial applications.
With flexible production capabilities and customized specifications, our PE Corrugated Pipes meet the requirements of global contractors, distributors, and infrastructure projects.
Technical Specifications
|
Parameter |
Specification |
|
Product Name |
PE Corrugated Pipe |
|
Material |
HDPE / PE100 Virgin Material |
|
Pipe Structure |
Single Wall / Double Wall Corrugated Structure |
|
Diameter Range |
DN200mm - DN3000mm |
|
Ring Stiffness |
SN4 / SN8 / SN16 |
|
Pipe Length |
Standard 6m / Customized |
|
Inner Surface |
Smooth PE Layer |
|
Outer Surface |
Corrugated Reinforced Layer |
|
Connection Method |
Socket Connection / Rubber Ring / Electro Fusion |
|
Operating Temperature |
-40℃ to +60℃ |
|
Service Life |
50+ Years Under Normal Conditions |
Product Structure & Reinforcement Technology
Smooth Inner Layer
The inner wall provides:
Low flow resistance
Improved hydraulic efficiency
Reduced sediment accumulation
Stable drainage performance
Corrugated Outer Layer
The structured outer wall enhances:
Ring stiffness
External load resistance
Underground stability
Impact protection
High-Performance PE Material
Using high-quality HDPE/PE100 resin ensures:
Excellent chemical resistance
Long-term durability
Crack resistance
Reliable performance in harsh environments
Performance Advantages
Lightweight & Easy Installation
Lower weight than concrete or metal pipes, reducing transportation costs and simplifying installation.
Corrosion & Chemical Resistance
PE material resists rust, chemicals, and harsh underground conditions for long service life.
High External Load Strength
Corrugated structure improves ring stiffness and load-bearing performance underground.
Flexible Custom Solutions
Available in various diameters, stiffness grades, and connection options to meet project needs.
Ring Stiffness Selection Guide
The appropriate ring stiffness grade depends on installation depth, soil conditions, traffic load, and project requirements.
SN4 – Standard Load Performance
Suitable for general underground drainage applications with moderate external loads.
Typical applications:
Agricultural drainage systems
General water discharge pipelines
Low traffic load areas
SN8 – Enhanced Load Performance
Designed for projects requiring improved resistance against external pressure and underground loading.
Typical applications:
Municipal drainage systems
Urban infrastructure projects
Road drainage applications
SN16 – Heavy-Duty Load Performance
Recommended for demanding underground environments with higher structural requirements.
Typical applications:
Deep burial installations
Heavy traffic areas
Industrial infrastructure projects
Connection Methods
Rubber Ring Socket Connection
Advantages:
Fast installation
Reliable sealing performance
Suitable for underground drainage systems
Electro Fusion Connection
Advantages:
Strong joint performance
Improved leakage protection
Suitable for demanding applications
Manufacturing Process
Raw Material Inspection
Qualified HDPE/PE100 resin is inspected before production to ensure consistent material performance.
Precision Extrusion Forming
Advanced extrusion equipment forms the pipe structure with controlled dimensions and stable mechanical properties.
Corrugation Molding
The outer corrugated layer is precisely formed to achieve the required ring stiffness and structural performance.
Cooling & Dimension Calibration
Controlled cooling and calibration ensure accurate pipe dimensions and installation compatibility.
Final Inspection & Packaging
Finished pipes undergo quality inspection before being prepared for export packaging and shipment.
Quality Control & Testing
Raw Material Verification
Incoming PE materials are inspected to ensure compliance with production requirements and consistent mechanical performance.
Dimensional Accuracy Control
Pipe diameter, wall structure, length, and dimensional tolerances are monitored throughout production.
Ring Stiffness Testing
Finished pipes are tested to verify resistance against external loads and underground pressure conditions.
Mechanical Performance Testing
Testing includes evaluation of impact resistance, structural strength, and overall product reliability.
Final Product Inspection
Each production batch undergoes final inspection before delivery to ensure stable quality and reliable project performance.
Standards & Certifications
Our PE Corrugated Pipes can be manufactured according to international and regional requirements, including:
ISO quality management standards
EN pipe standards
ASTM related standards
Customer-specific project specifications
Custom Manufacturing Capability
|
Custom Option |
Available |
|
Diameter |
Customized |
|
Length |
Customized |
|
Ring Stiffness |
SN4 / SN8 / SN16 |
|
Connection Type |
Customized |
|
Material Grade |
HDPE / PE100 |
|
Color |
Customized |
|
Packaging |
Export Standard |
Engineering Support
Beyond manufacturing, we provide technical support for pipeline projects.
Services include:
Packaging & Delivery
To ensure safe transportation and product protection, PE Corrugated Pipes are prepared using export-standard packaging methods.
Packaging services include:
- Pipe bundling
- Protective handling
- Container loading optimization
- International shipping support
Frequently Asked Questions
Q: What is PE Corrugated Pipe used for?
A: PE Corrugated Pipes are widely used for underground drainage, stormwater systems, sewer pipelines, agricultural drainage, and infrastructure projects.
Q: What is the difference between SN4, SN8, and SN16 pipes?
A: SN grades represent ring stiffness. Higher SN ratings provide greater resistance to external loads and are suitable for more demanding underground conditions.
Q: Why choose PE Corrugated Pipe instead of concrete pipe?
A: PE Corrugated Pipes are lighter, easier to install, corrosion-resistant, and require less maintenance compared with traditional concrete pipes.
Q: How long is the service life of PE Corrugated Pipe?
A: Under proper installation and operating conditions, PE Corrugated Pipes can provide a service life of 50 years or more.
Q: Can you manufacture customized PE Corrugated Pipes?
A: Yes. We provide customized solutions including diameter, length, stiffness grade, connection type, and packaging according to project requirements.
Q: What are the advantages of PE Corrugated Pipe compared with concrete or metal pipes?
A: Compared with traditional concrete and metal pipes, PE Corrugated Pipes offer several advantages, including lighter weight, easier transportation and installation, excellent corrosion resistance, and reduced maintenance requirements. The flexible PE structure also provides better resistance against underground movement and environmental stress.
Q: What diameter sizes of PE Corrugated Pipes can you manufacture?
A: We can manufacture PE Corrugated Pipes in a wide range of diameters from DN200mm to DN3000mm. Customized dimensions are available according to project requirements, application conditions, and installation specifications.
Q: What materials are used for PE Corrugated Pipes?
A: Our PE Corrugated Pipes are manufactured using high-quality HDPE or PE100 virgin materials. These materials provide excellent mechanical strength, chemical resistance, crack resistance, and long-term durability for underground applications.
Q: Can PE Corrugated Pipes be used for deep underground installation?
A: Yes. PE Corrugated Pipes with higher ring stiffness grades, such as SN8 and SN16, are suitable for deeper burial conditions and applications requiring improved resistance against soil pressure and external loads.
Q: Are PE Corrugated Pipes resistant to chemicals and corrosion?
A: Yes. HDPE/PE100 materials provide excellent resistance to corrosion, chemicals, moisture, and aggressive underground environments, making them suitable for various industrial and infrastructure applications.
Q: What connection methods are available for PE Corrugated Pipes?
A: Common connection methods include rubber ring socket connections and electro fusion connections. The suitable connection method depends on project requirements, installation conditions, sealing requirements, and customer specifications.
Q: Can you provide customized PE Corrugated Pipe solutions?
A: Yes. We provide customized manufacturing solutions including diameter, length, ring stiffness, connection method, material grade, color, and packaging according to customer project requirements.
Q: What is the expected service life of PE Corrugated Pipe?
A: Under proper design, installation, and operating conditions, PE Corrugated Pipes can provide a service life of 50 years or more. Actual service life depends on installation quality, environmental conditions, and project requirements.
Q: Can you provide technical documents for project approval?
A: Yes. We can provide technical documents such as product specifications, inspection reports, material information, and other project-related documentation according to customer requirements.
