Product Overview

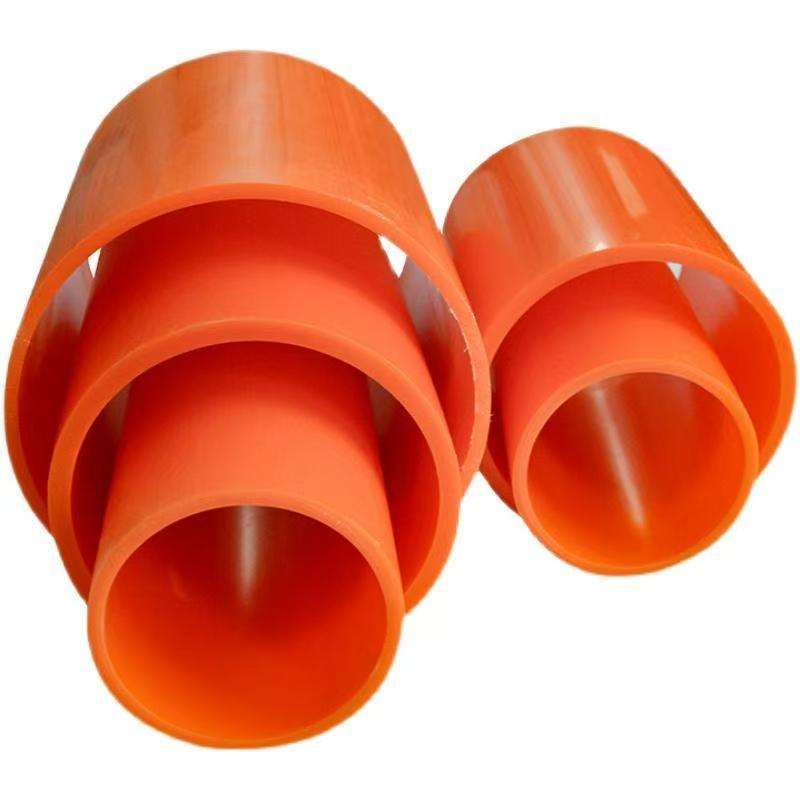

MPP (Modified Polypropylene) power pipe is an extruded heavy-duty conduit engineered specifically for subsurface underground power cable protection. Utilizing a high-impact modified PP resin compound, it balances structural ring stiffness with long-term dielectric performance.
Technical Specifications
|
Property |
Standard Metric |
Value / Compliance |
|
Material |
Modified Polypropylene (MPP) |
High-impact resistance resin compound |
|
Outer Diameter (OD) |
110mm - 315mm |
Custom dimensions available upon request |
|
Standard Length |
6m / 12m per section |
Customized lengths for container shipping |
|
Connection Method |
Butt Fusion Welding |
Creates a seamless, high-tensile joint |
|
Vicat Softening Temp. |
ASTM / ISO standards |
≥120 ℃(High thermal stability) |
|
Standard Compliance |
ISO 9001 / CE Standards |
Tested for heavy underground load bearing |
Engineering Performance & Installation Advantages
Designed to withstand pulling tensions of up to 25–30 MPa, helping limit elongation and necking during trenchless installation beneath highways and rivers.
High-impact modified PP construction supports ring stiffness classes of SN8 (≥ 8 kN/m²) and SN10, providing resistance to heavy dynamic surface loads.
The non-conductive structure provides a dielectric strength exceeding 15 kV/mm, helping isolate cables from earth currents and reducing the risk of galvanic corrosion.
Resistant to acidic groundwater within pH 2–13 and saline soil conditions, with a stated design service life of over 50 years.
Application & Load Matching Matrix
|
Application Scenario |
Typical Environmental Characteristics |
Recommended Rigidity Class |
Suggested Wall Thickness / SDR |
Technical Installation Notes |
|
Urban Arterial Roads / Intersections |
Subject to frequent heavy truck traffic and dynamic load impacts; high compaction requirements |
SN10 |
Medium-to-heavy wall / High-impact compound |
Strictly control trench backfill density to prevent localized settlement |
|
Trenchless HDD Crossings |
Requires enduring long-distance pullback tension beneath rivers or dense utility zones |
SN8 / SN10 |
High tensile-strength standard wall |
Monitor pullback tension (keep within 25–30 MPa) and ensure $R \ge 30 \times \text{OD}$ |
|
Industrial Park Heavy Networks |
Potential exposure to specific chemical elements and frequent heavy transport vehicle traffic |
SN10 |
Acid-alkali resistant heavy duty (pH 2-13 compatible) |
Account for soil chemistry; utilize non-conductive properties to isolate stray currents |
|
Municipal Greenbelts / Sidewalks |
Lighter surface loads, relatively stable burial depths, minimal environmental interference |
SN8 |
Standard wall series |
Ensure flat trench bed to prevent sharp stones from direct pressure on the pipe |
Field Verification & Installation Guidance
Contractor-Focused Technical Support: Our engineering team provides on-site guidance on thermal butt fusion, including heating plate temperatures of 210°C ± 10°C and cooling intervals, supporting consistent joint quality and leak resistance.
Trenchless Pulling Advisory: We provide reference data for recommended pulling loads and minimum bending radii (R ≥ 30 × OD) for HDD installation under different soil conditions.
Geological Matching Assistance: Based on field experience from utility projects, our team helps project managers select suitable pipe stiffness classes, such as SN8 or SN10, according to traffic loads and trench depths.
Frequently Asked Questions
Q: What are your standard export packing and loading methods?
A: Pipes are nested in sections of 6m or 12m and packed in bundles inside 20GP or 40HQ containers to maximize space and lower shipping costs.
Q: Can we get free product samples before placing a bulk order?
A: Yes, free 30cm pipe samples are available for quality testing, with freight costs covered by the buyer.
Q: What are your accepted payment terms for international orders?
A: We accept T/T (30% deposit, 70% balance against the Bill of Lading copy) and L/C at sight for large-scale projects.
Q: Do you supply matching fittings and connection tools for installation?
A: Yes, we provide matching butt fusion welding machines, heating plates, and specialized pipe bends or couplers upon request.
Q: How do you handle custom specifications or OEM branding?
A: We support OEM services, including custom pipe colors, wall thicknesses, and laser-printed project tags or company logos on the pipe surface.
Q: What ports do you normally use for ocean freight shipping?
A: We primarily ship from major ports like Ningbo and Shanghai, ensuring fast and reliable global logistics dispatch.
Q: Do you have quality certifications like ISO9001 and CE for your MPP pipes?
A: Yes. All our MPP power pipes are manufactured under strict ISO 9001 quality management systems and comply with CE standards. Third-party test reports and certification copies are available upon request for project bidding and customs clearance.
