Overview
Engineered specifically for pressurized plumbing, municipal water, and industrial fluid systems, the 3 PVC Expansion Coupling provides reliable axial movement compensation for thermal expansion and contraction.
Product at a Glance
|
Parameter |
Specification |
|
Product Name |
3" PVC Expansion Coupling (Pressure Rated) |
|
Trade Size |
3 Inch (DN80) |
|
Material Composition |
High-Impact Virgin PVC-U (Cell Class 12454 per ASTM D1784) |
|
Design Construction |
Two-Piece Piston-Barrel Assembly with Dual EPDM O-Rings |
|
Primary Application |
Pressure Plumbing, Water Distribution, Irrigation, and DWV Systems |
|
Compatible Pipe |
Schedule 40 & Schedule 80 PVC Pressure Pipes (ASTM D1785) |
|
Connection Type |
Solvent-Weld Socket x Socket (Compliant with ASTM D2467) |
|
Max Working Pressure |
150 PSI – 200 PSI (Depending on operational testing) |
|
Certifications |
NSF/ANSI 61 & 372 Certified for Potable Water (Optional/Available upon request) |
|
Installation Orientation |
Horizontal or Vertical Axial Inline Setup |

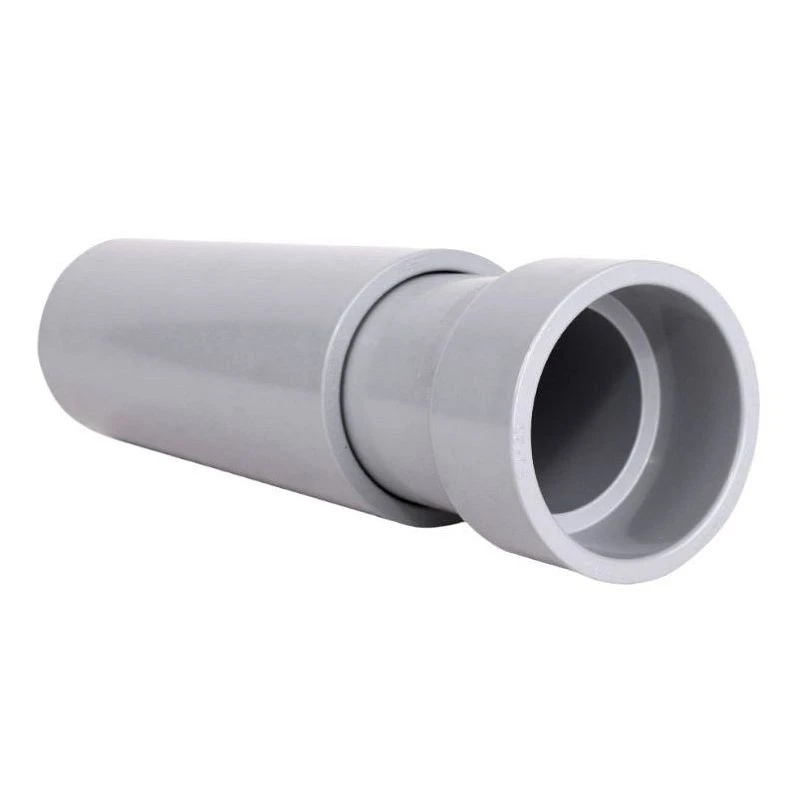

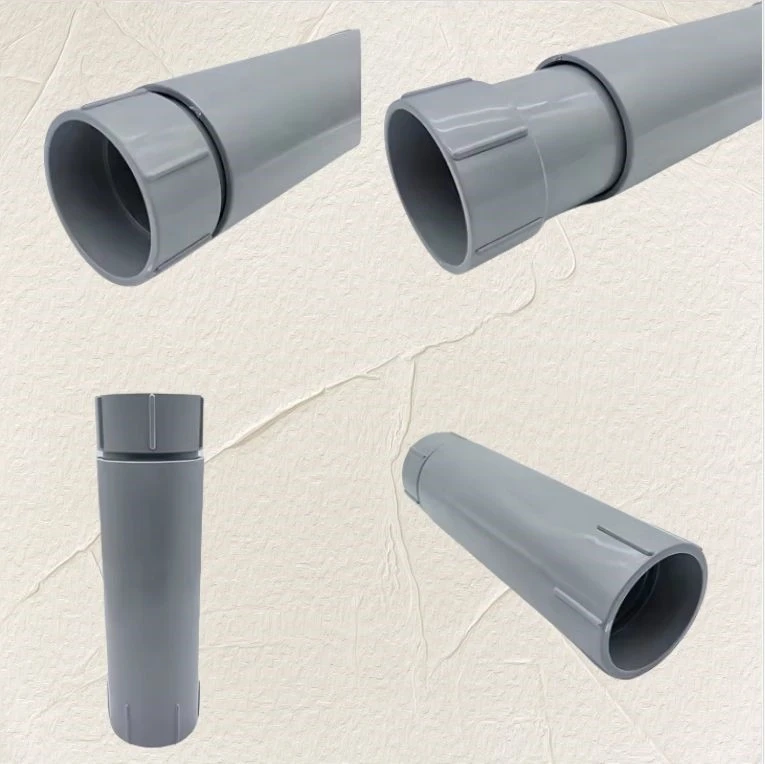

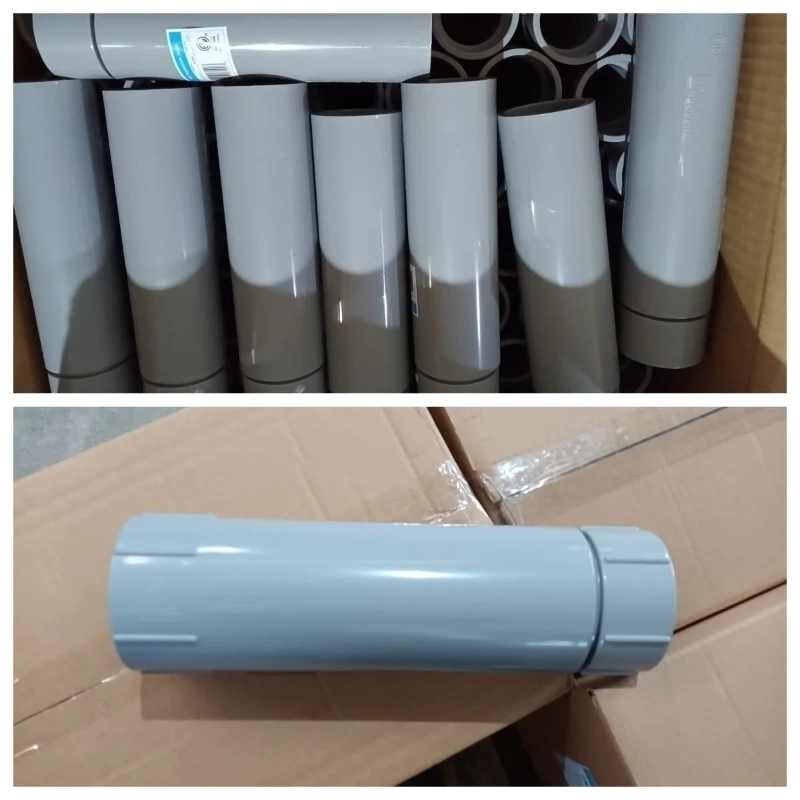

3" Two-Piece Construction
01 - PVC Coupling Body
The molded PVC body forms the main housing of the fitting and provides compatibility with the specified PVC pipe system.
02 - Expansion Section
The internal movement section provides space for axial extension and contraction of the connected conduit.
03 - Socket Connection
The pipe ends are connected to the coupling using the specified solvent-welding procedure, creating the mechanical connection required by the installation.
04 - Movement Reference
A visible or specified reference position can be used during installation to establish the required starting position of the expansion section.
Why It Matters in High-Performance PVC Piping Systems
|
Project Condition |
Engineering Impact & Solution |
|

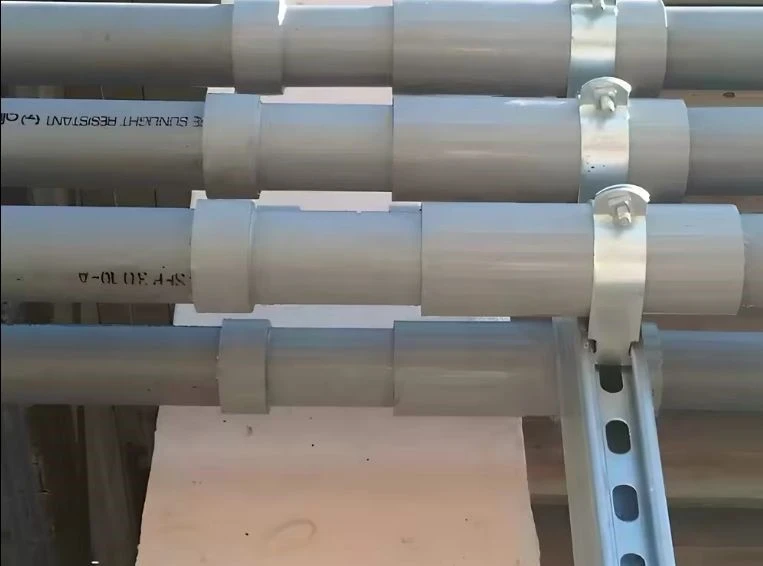

Long Exposed Pipeline Runs |
Unmitigated thermal expansion can cause pipe bowing; the expansion coupling absorbs linear movement. |
|
Wide Daily Temperature Swings |
Prevents joint fatigue and cracking by actively compensating for continuous pipe growth and shrinkage. |
|
Outdoor & Solar Exposure |
Mitigates severe temperature differentials experienced by surface-mounted or exposed overhead piping. |
|
Multiple Fixed Anchor Points |
Relieves extreme stress between fixed building entries, equipment pads, and support hangers. |
|
Vertical Risers & Tall Buildings |
Controls gravitational and thermal shifts in vertical risers, protecting elbows and tees from shear stress. |
|
Large-Scale Commercial Projects |
Ensures strict dimensional consistency, batch reliability, and compliance with strict engineering specs. |
Installation Guidelines & Engineering Best Practices
Calculate Travel Distance: Measure the ambient installation temperature and compare it with the expected maximum and minimum operating temperatures to determine the required initial piston setting.
Align Properly: Ensure the piping on both sides of the expansion coupling is securely aligned and supported with proper hangers to prevent side-loading (axial alignment is critical).
Solvent Welding: Clean and prime both the socket and pipe ends thoroughly using ASTM-compliant primer and medium-to-heavy body PVC cement. Quickly insert and hold to prevent push-out.
Anchor Placement: Install secure pipe anchors immediately before and after the expansion assembly to direct thermal movement precisely into the coupling.
Engineering Field Failure Prevention Guide
Piston Seizing or Separation
Site Risk: Unmitigated ambient temperature fluctuations cause extreme expansion, or lack of proper linear alignment leads to mechanical binding.
Factory Mitigation: Every unit features integrated mechanical travel limit markers and clear installation scaling guidelines to prevent over-extension during fitting.
Long-Term Micro-Seepage at Joints
Site Risk: Subpar material elasticity or ovality mismatch under continuous pressure cycles results in seal degradation.
Factory Mitigation: Fabricated exclusively from virgin unplasticized rigid polyvinyl chloride and pressure-tested with dual EPDM sealing rings to maintain structural integrity across dynamic operational shifts.
Frequently Asked Questions
Q: What is the maximum expansion/contraction travel length for this 3-inch coupling?
A: Typically accommodates up to 3 to 6 inches of linear movement depending on the specific operational temperature delta.
Q: Can this coupling be buried underground or used in direct sunlight?
A: UV-stabilized for exposed outdoor installations, but underground direct burial requires protective vault housing to prevent soil loading.
Q: Are replacement EPDM O-rings available for long-term maintenance?
A: Yes, replacement dual EPDM seal kits are stocked and available for routine municipal or industrial maintenance schedules.
Q: Is this expansion fitting suitable for compressed air or gas lines?
A: No. PVC pressure fittings are strictly engineered for liquid media (water, wastewater, and approved chemicals) and are not rated for compressed air or gas.
Q: What is your standard Minimum Order Quantity (MOQ) for custom project orders?
A: Standard stock items have low MOQ flexibility, while custom color or specific certification batch orders typically start at 50 pieces.
Q: Do you provide third-party lab testing reports alongside material certificates?
A: Yes, mill test reports (MTR) and batch-specific ASTM compliance documentation can be supplied with your commercial shipment.
Q: What is the standard lead time for full-container municipal projects?
A: Standard production and dispatch lead time ranges from 15 to 25 days, depending on current factory queue and order volume.
